Operation And Display

Forest Air Display

• Forest Air system state is indicated on the display.

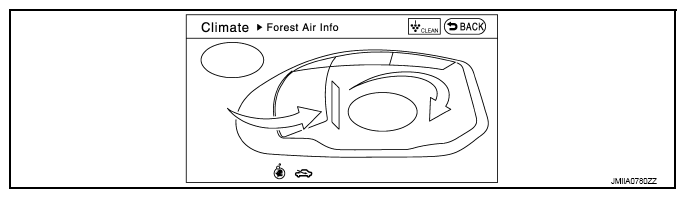

• "Climate" menu is indicated on display when CLIMATE switch of multifunction switch is pressed while FOREST switch is ON. Operation status of Forest Air system is displayed when "Forest Air Info" is touched.

Air flow control (inside odor detecting mechanism)

• Display is switched as per the following description depending on interior air status

• Interior air status display (1) is blue, while interior air is in clean status.
• Interior air status display (1) is orange, while interior air is in dirty status.
  NOTE: Interior air status display is not indicated, while air inlet is in manual control status.
  Fig 2: Interior Air Status Screen

  Courtesy of NISSAN NORTH AMERICA, INC.

Aroma diffuser control

• Display is switched as shown in the figure below, depending on type of aroma, while aroma diffuser operates.

• Leaf scent
  Fig 3: Aroma Diffuser Control Screen (Leaf Scent)

  Courtesy of NISSAN NORTH AMERICA, INC.
• Fragrant wood
  Fig 4: Aroma Diffuser Control Screen (Fragrant Wood)

  Courtesy of NISSAN NORTH AMERICA, INC.

Automatic defogging control

• Window portion (1) changes to white and automatic defogging operates, when windshield fogging is detected.
  Fig 5: Automatic Defogging Control Screen

  Courtesy of NISSAN NORTH AMERICA, INC.

Automatic intake control (exhaust gas/outside odor detecting mechanism)

• Display is switched as per the following description depending on ambient air status, air inlet status, and switching status of recirculation and fresh air intake.

• Ambient air status display (1) is blue, while ambient air is in clean status.
• Ambient air status display (1) is orange, while ambient air is in dirty status.
  NOTE: Ambient air status display is not indicated, while air inlet is in manual control status.
  Fig 6: Automatic Intake Control Screen

  Courtesy of NISSAN NORTH AMERICA, INC.

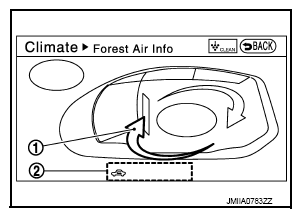

• Air inlet status is indicated by an arrow (1). Lower display (2) indicates air inlet status and control status (automatic control/manual control)

  Air inlet status	Control status	Display
  Recirculation	Automatic control	RECIRCULATE
  	Manual operation	RECIRCULATE Manual Mode
  Fresh air intake	Automatic control	FRESH AIR
  	Manual operation	FRESH AIR Manual Mode

  Fig 7: Air Inlet Status Screen

  Courtesy of NISSAN NORTH AMERICA, INC.

Breezy air control

• Animation that is imaged from breezy air (1) is displayed, while breezy air control is operated.
  Fig 8: Breezy Air Control Screen

  Courtesy of NISSAN NORTH AMERICA, INC.

Plasmacluster™ control

• Plasmacluster ™ ion display is switched as shown in the figure below depending on air flow.
  NOTE:

  • Plasmacluster™ ion technology developed by Sharp Corporation is installed in this item.
  • Plasmacluster™ is a trademark of Sharp Corporation.

• When air flow is small

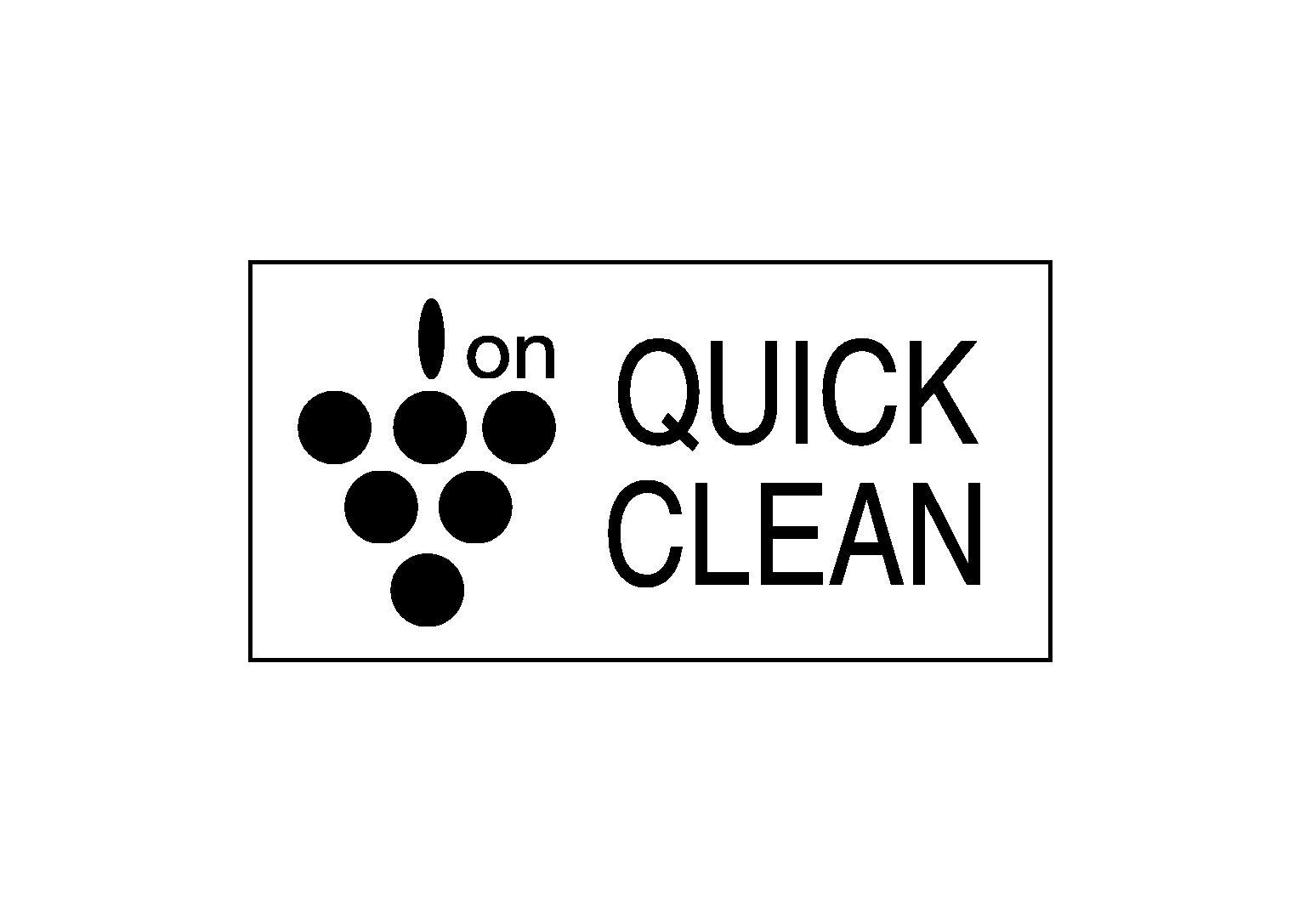

  Fig 9: Clean (When Air Flow Small)

  Courtesy of NISSAN NORTH AMERICA, INC.
• When air flow is large

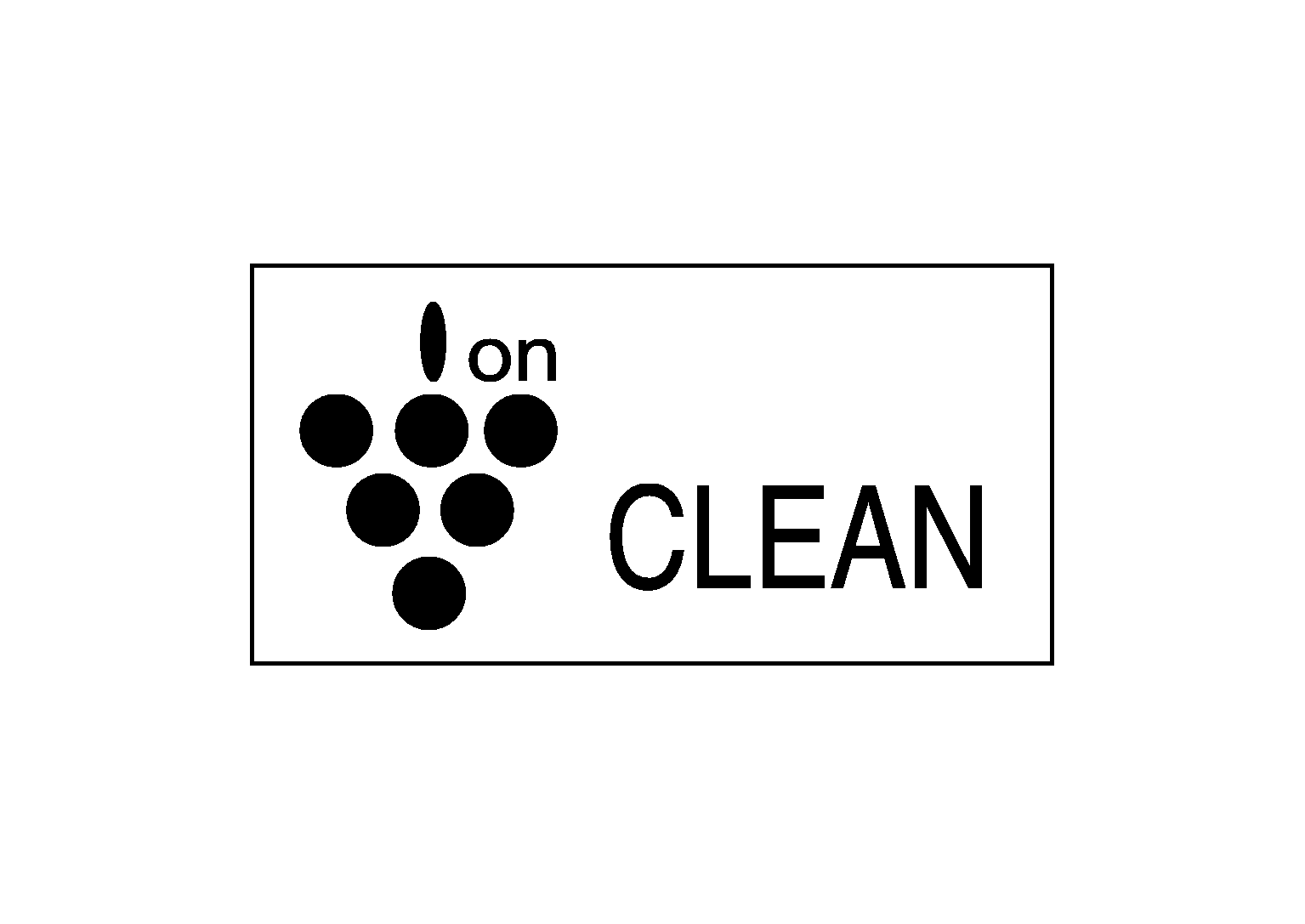

  Fig 10: Clean (When Air Flow Large)

  Courtesy of NISSAN NORTH AMERICA, INC.

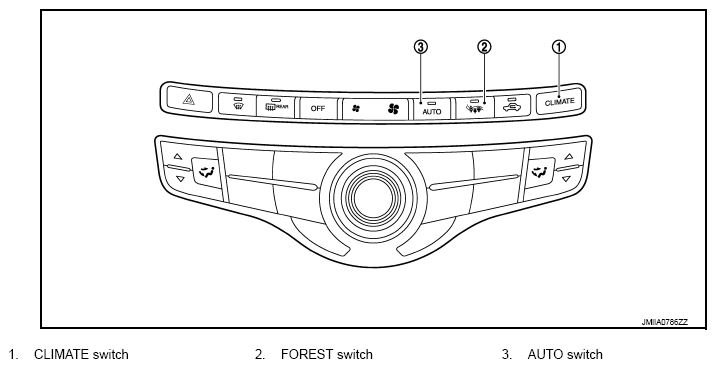

Forest Air Controller (Multifunction switch)

Switch name	Function
AUTO switch	When this switch is pressed, AUTO switch indicator lamp, "AUTO", and "AUTO DEF" on display turn ON, and then automatic defogging control starts.
CLIMATE switch	"Climate" menu is indicated on display when this switch is pressed.
FOREST switch	When this switch is pressed, AUTO switch indicator lamp, FOREST switch indicator lamp, "AUTO", and "AUTO DEF" on display turn ON, and then Forest Air system starts automatic control.
