AIR CONDITIONING CUT CONTROL: System Diagram

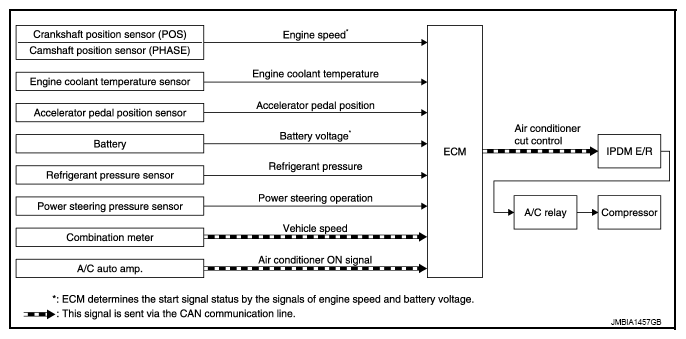

Fig 1: Air Conditioning Cut Control System Diagram

G08884405

Courtesy of NISSAN NORTH AMERICA, INC.
