How To Remove Extended Storage Switch

Type A

1. Turn the ignition switch OFF.
2. Turn the extended storage switch OFF.
3. Press pawl (A) and tilt to disengage the extended storage switch. Press pawl (B) and tilt to remove the extended storage switch.

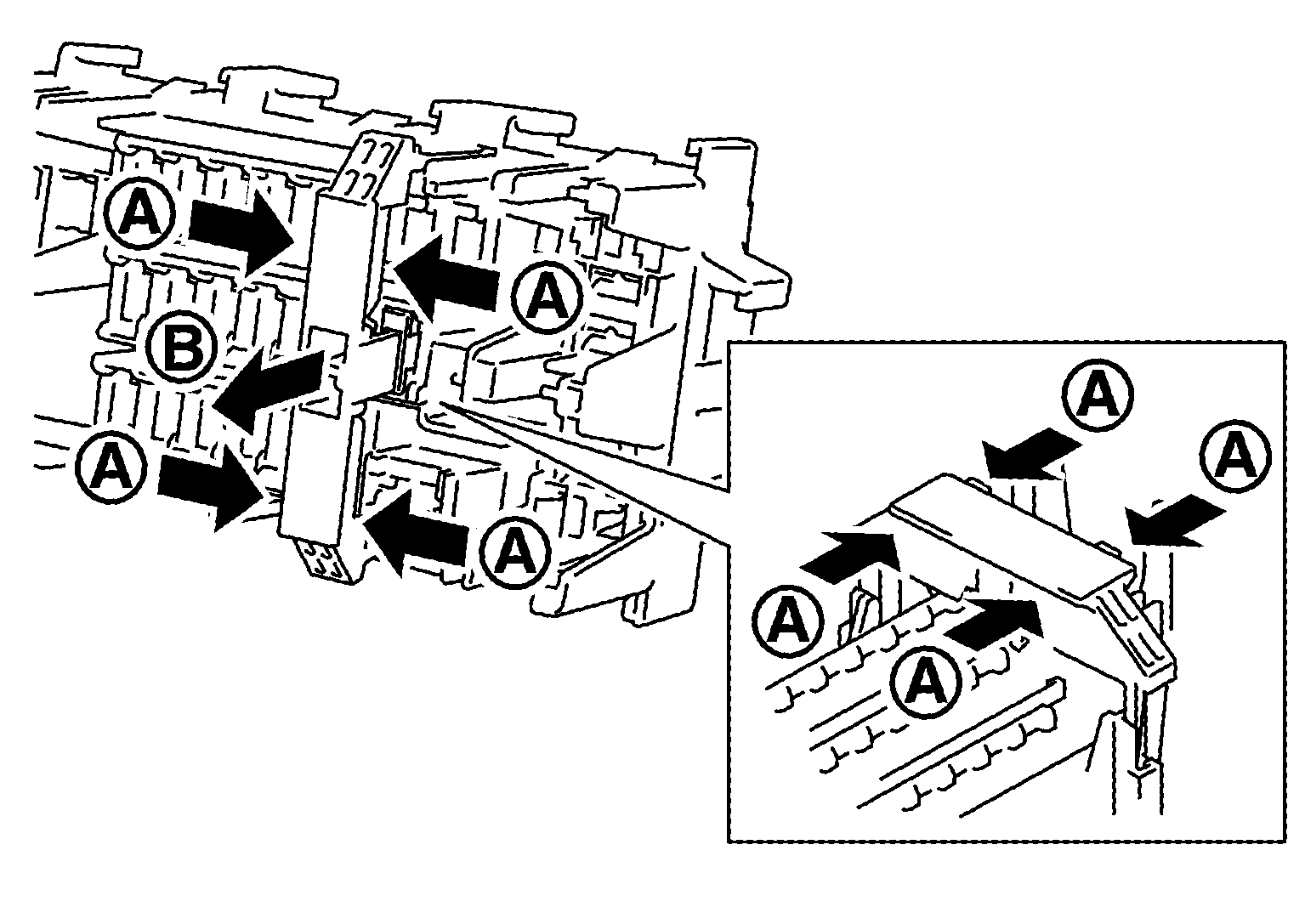

   Fig 1: Pressing Extended Storage Switch Pawls (Type A)

   Courtesy of NISSAN NORTH AMERICA, INC.
   NOTE:

   • Extended storage switch and fuse are removed together. Remove fuse from extended storage switch, if necessary.
   • Extended storage switch is for transportation and storage. Reinstallation is not required after the removal.

Type B

1. Turn the ignition switch OFF.
2. Turn the extended storage switch OFF.
3. Hold (A) and pull up the extended storage switch hard in (B) direction.

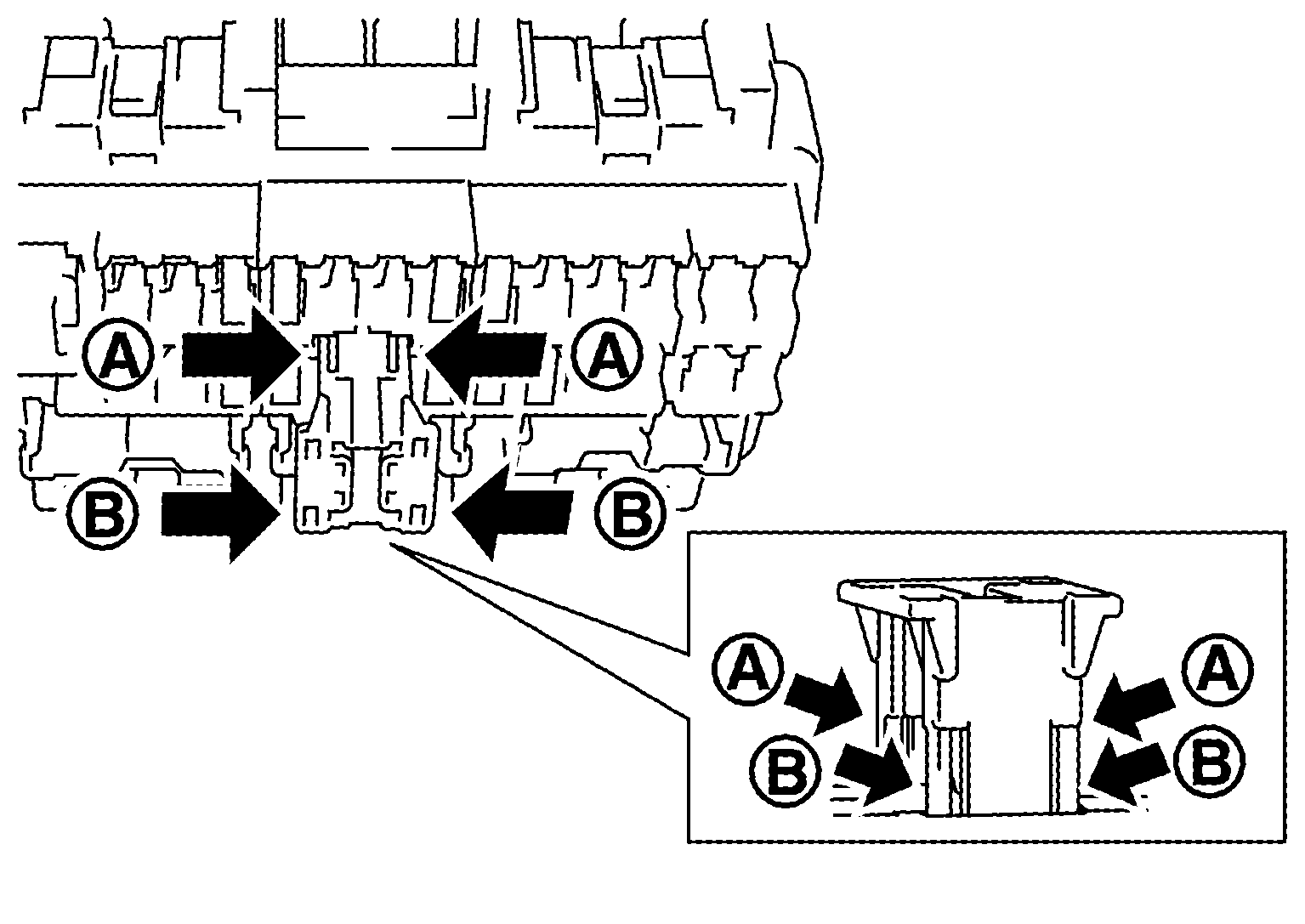

   Fig 2: Pressing Extended Storage Switch Pawls (Type B)

   Courtesy of NISSAN NORTH AMERICA, INC.
   NOTE:

   • Extended storage switch and fuse may be removed together. Remove fuse from extended storage switch, if necessary.
   • Extended storage switch is for transportation and storage. Reinstallation is not required after the removal.
