Overall Sequence

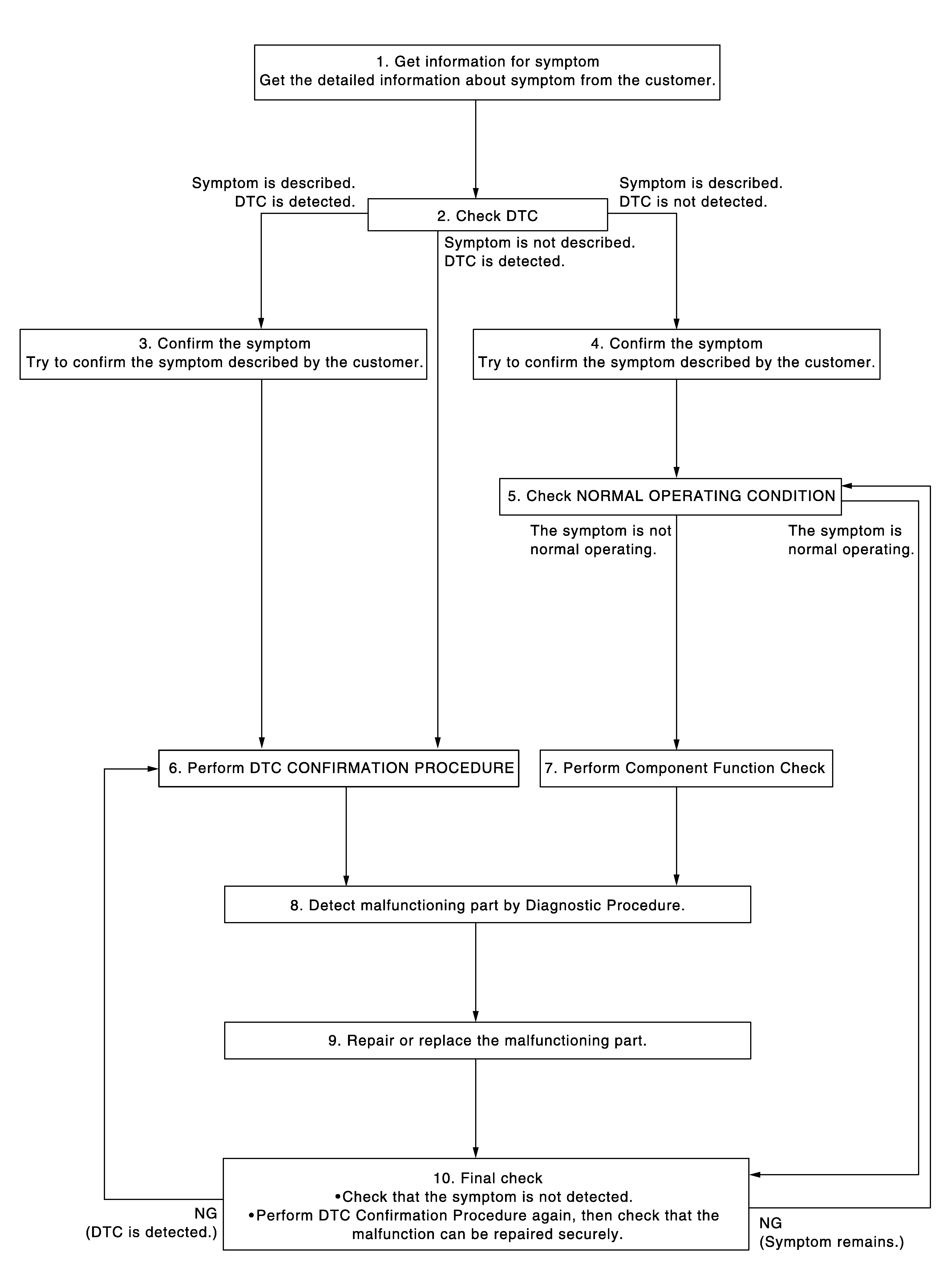

Fig 1: Diagnosis And Repair Work Flow Chart
G05727959Courtesy of NISSAN NORTH AMERICA, INC.
