Overall Sequence

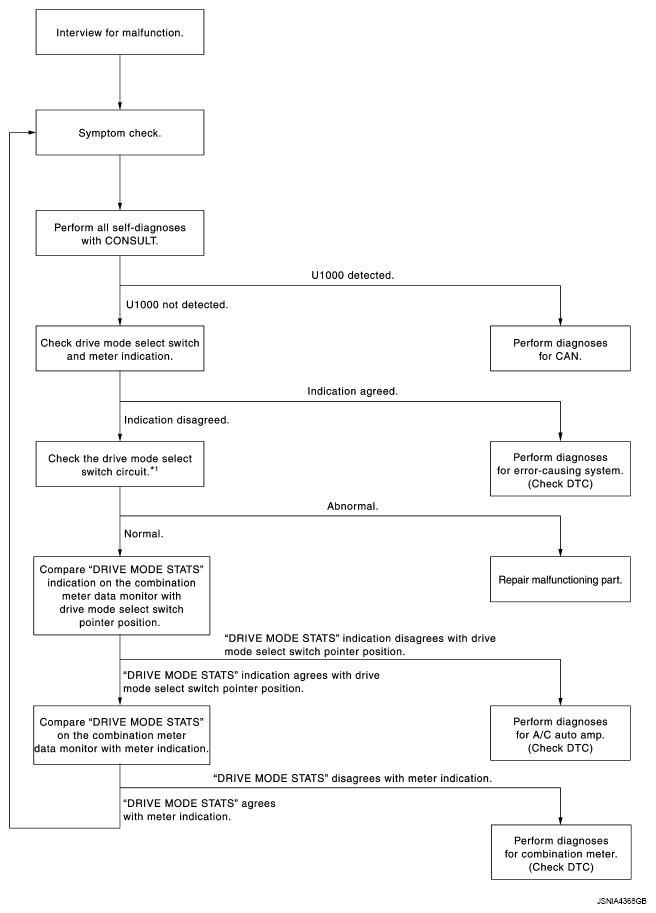

Fig 1: Diagnosis And Repair Work Flow Chart
G08898384Courtesy of NISSAN NORTH AMERICA, INC.
