Exploded View

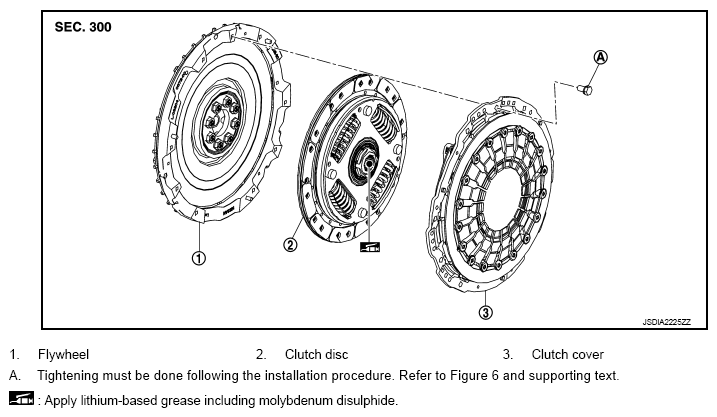

Fig 1: Exploded View Of Clutch 1

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: When replacing the clutch disc or clutch cover, replace the clutch disc, clutch cover, and flywheel as a set.
