Symptom Table

The diagnostics item numbers show the sequence for inspection. Inspect in order from item 1.

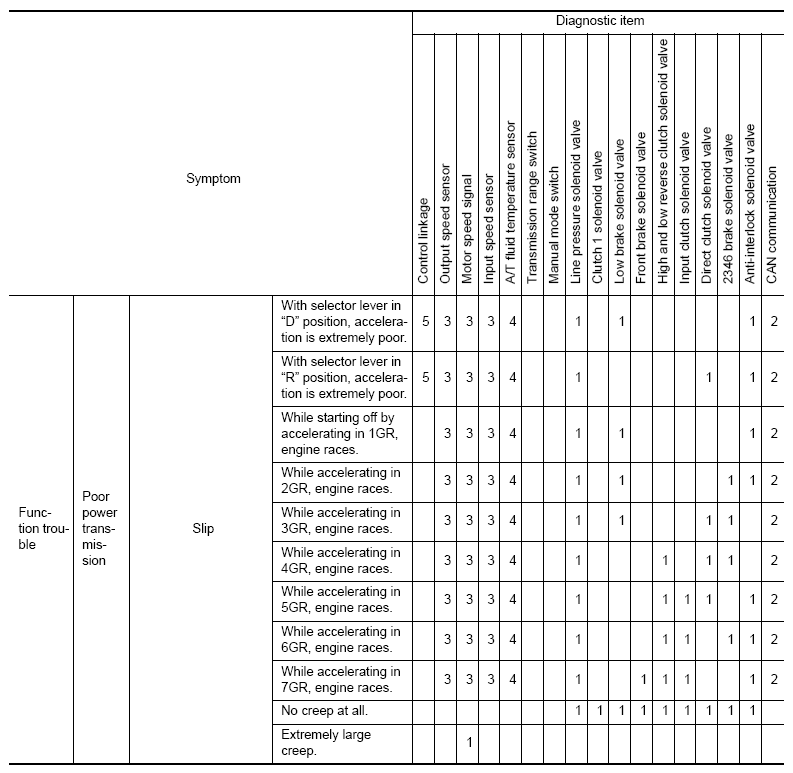

Fig 1: Symptom Chart (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

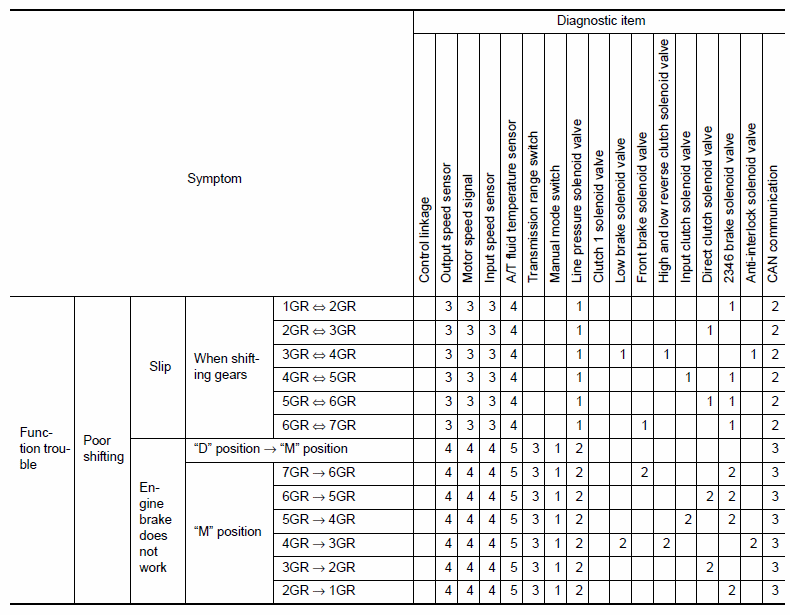

Fig 2: Symptom Chart (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

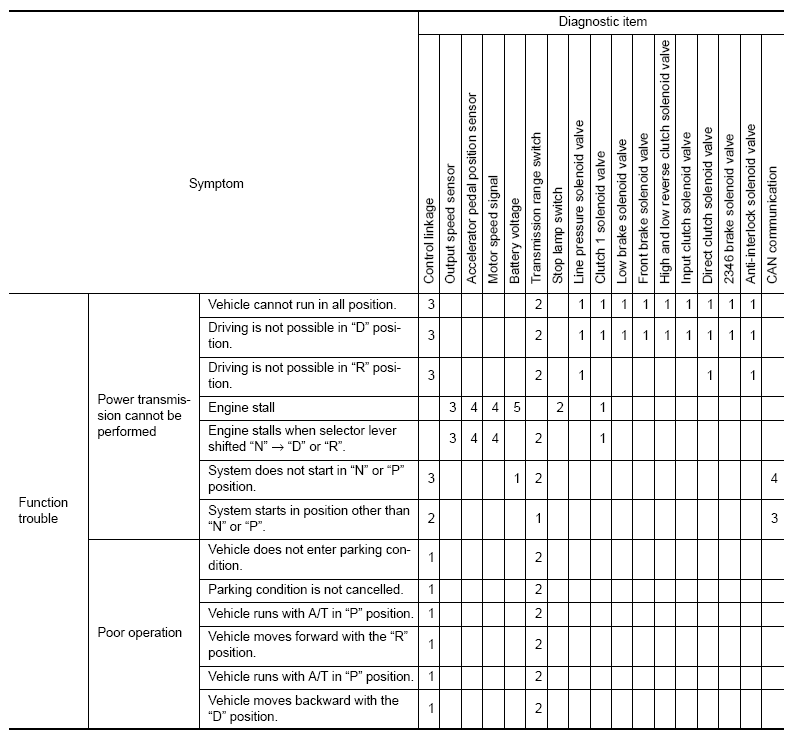

Fig 3: Symptom Chart (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

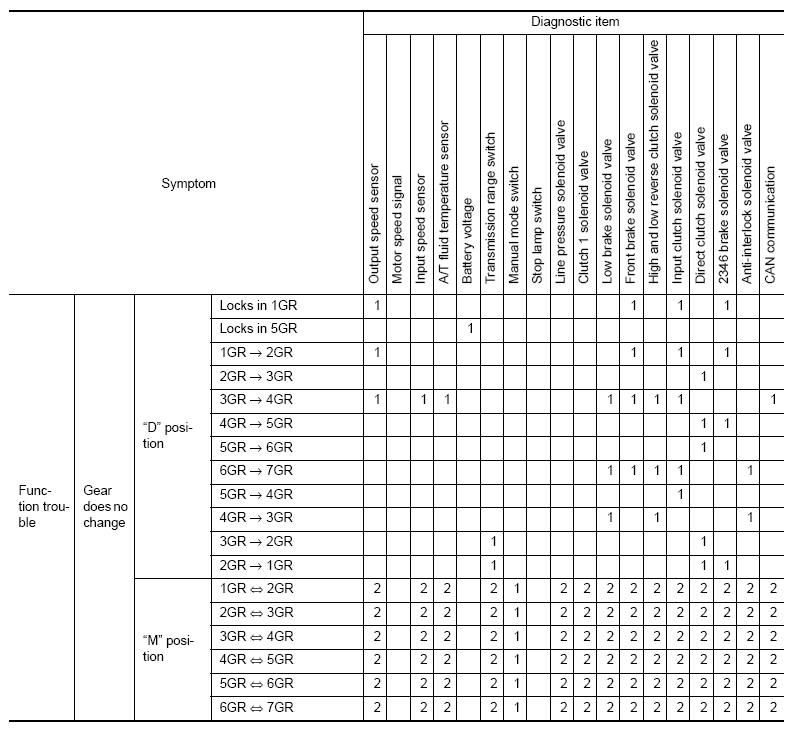

Fig 4: Symptom Chart (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

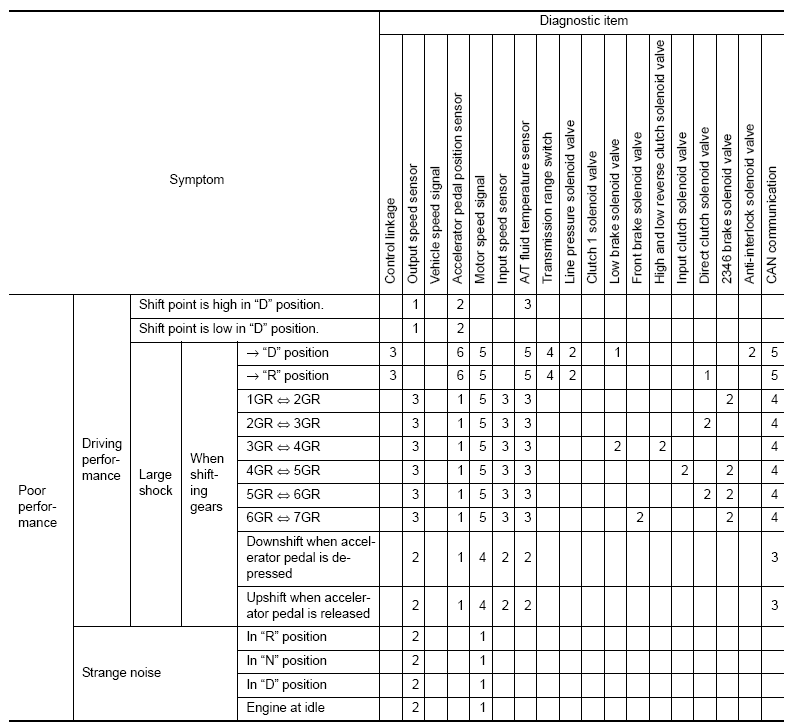

Fig 5: Symptom Chart (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
