Power Steering Oil Pump Assembly: Notes

The power steering oil pump assembly is primarily composed of the power steering control module (1), power steering motor (2), power steering oil pump (3), and reservoir tank (4).

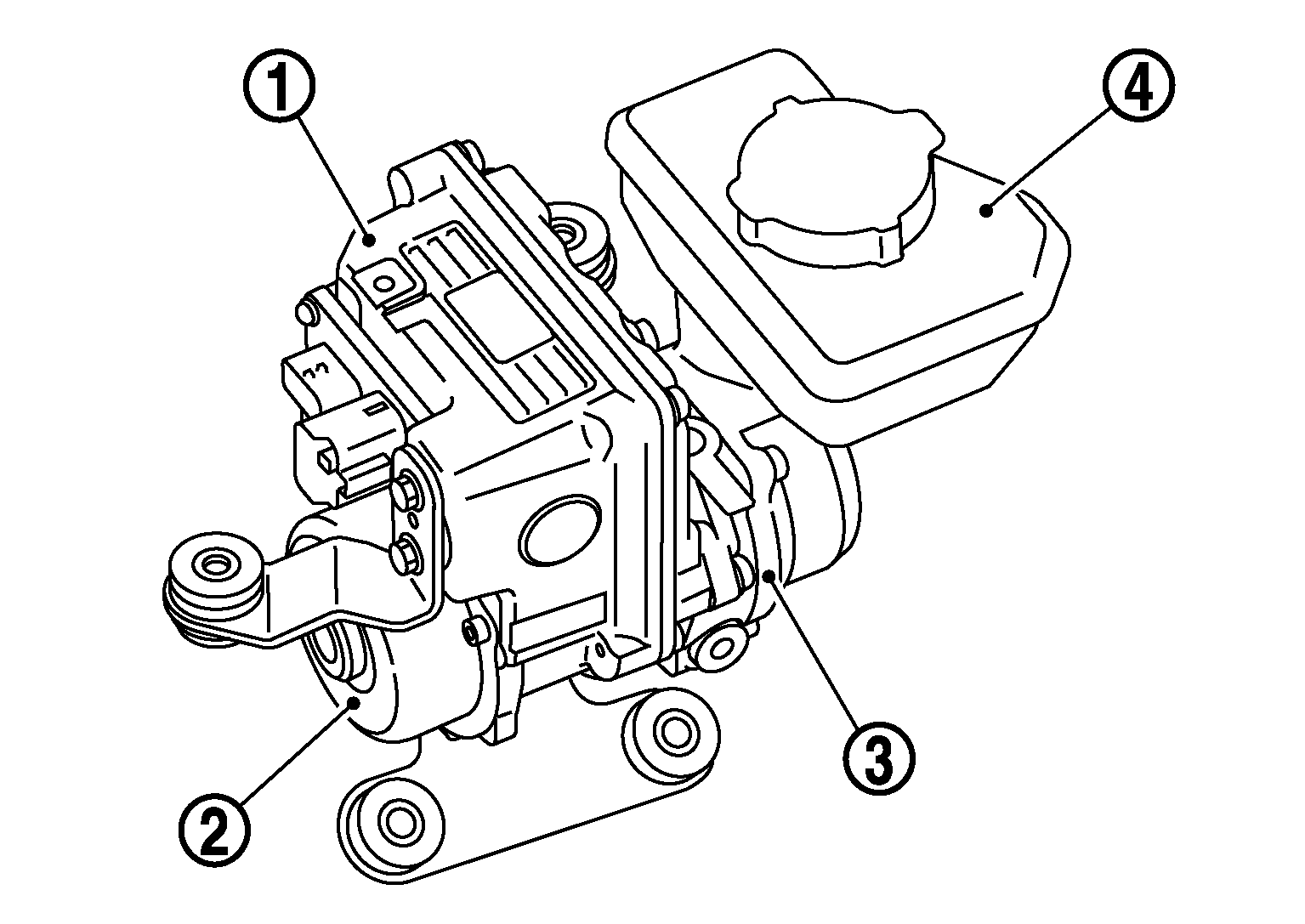

Fig 1: Identifying Power Steering Control Module, Power Steering Motor, Power Steering Oil Pump And Reservoir Tank

Courtesy of NISSAN NORTH AMERICA, INC.
