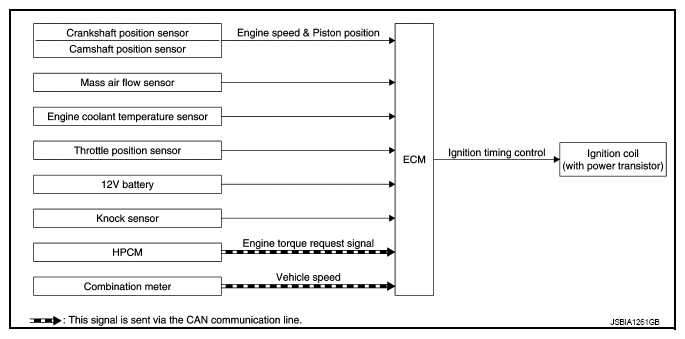

Home >> Infiniti >> 2013 >> M35h >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System (Introduction) >> System Description >> System >> Electric Ignition System >> ELECTRIC IGNITION SYSTEM: System Description >> System Diagram
