Engine Control System (Introduction)
>>
DTC/Circuit Diagnosis
>>
Trouble Diagnosis - Specification Value
>>
Diagnosis Procedure
>>
Overall Sequence
Overall Sequence

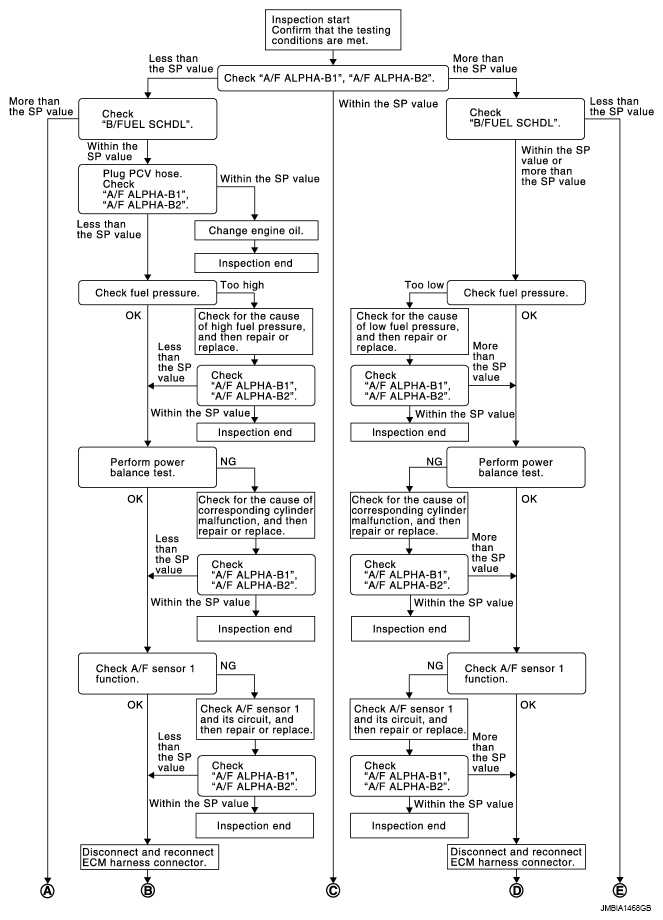

Fig 1: Trouble Diagnosis Procedure Flow Chart (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

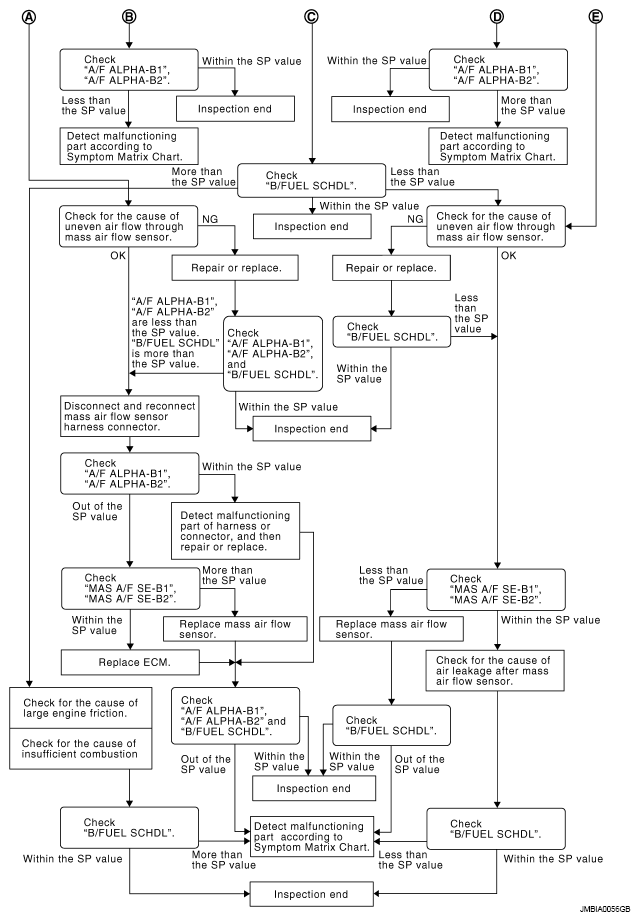

Fig 2: Trouble Diagnosis Procedure Flow Chart (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
