AWD SYSTEM: System Description
>>
System Diagram
System Diagram

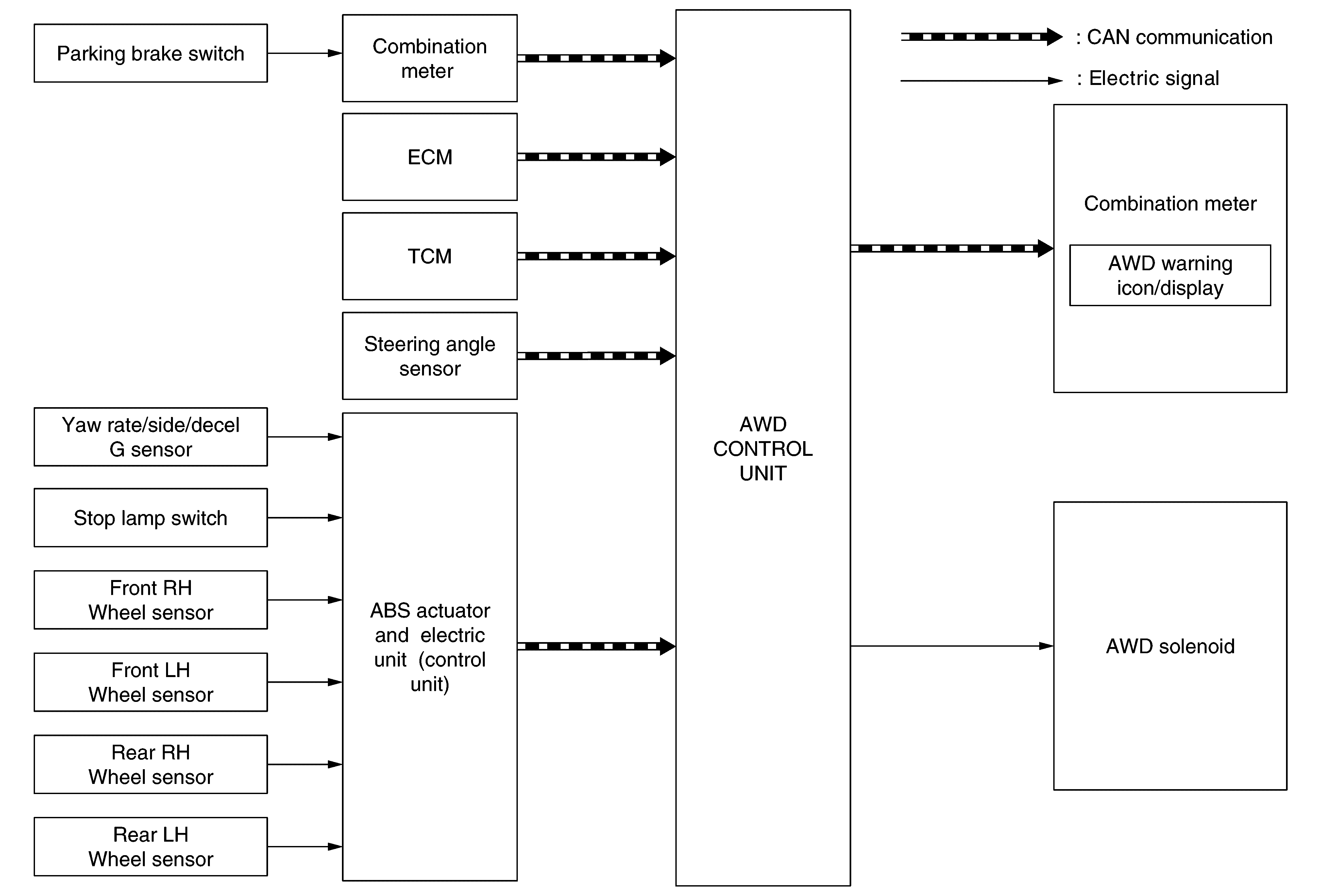

Fig 1: AWD Control Unit System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
