AWD SYSTEM: Circuit Diagram

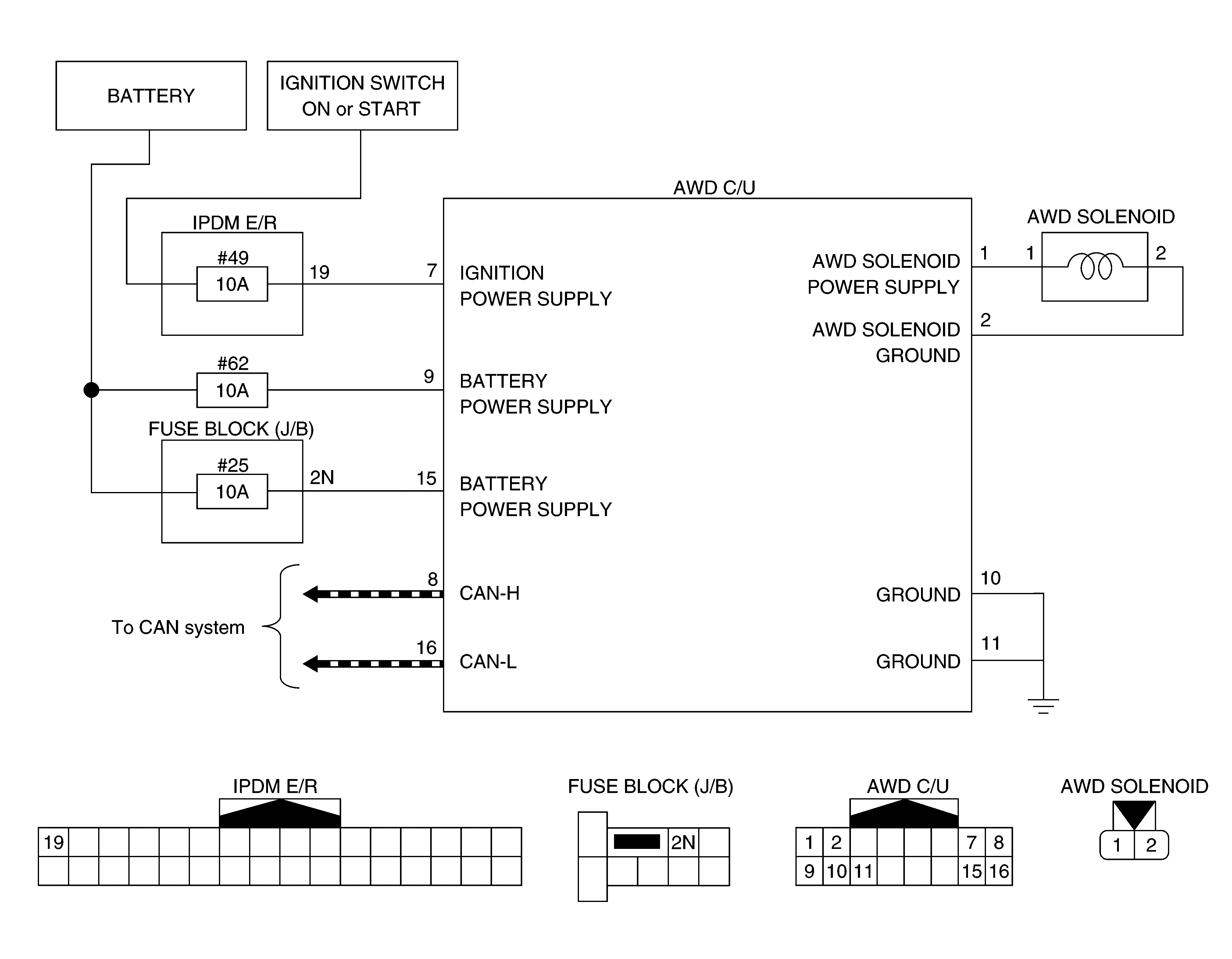

Fig 1: AWD System Circuit Diagram

G08855973

Courtesy of NISSAN NORTH AMERICA, INC.
