Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove storage box. Refer to "EXPLODED VIEW ".

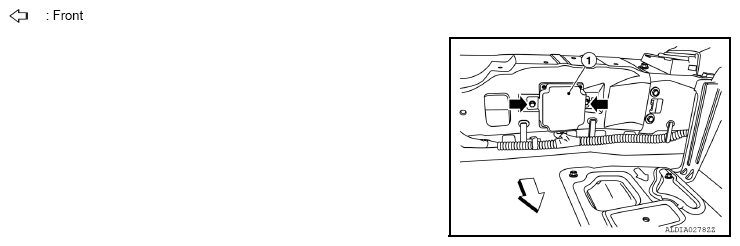

    Fig 1: Locating AWD Control Unit Bolts
    G08856002Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove AWD control unit bolts (←).
  4. Disconnect AWD control unit harness connector.
  5. Remove AWD control unit (1).
