Transfer Oil: Refilling

CAUTION: Do not start engine while checking oil level.

Remove filler plug (1).
Fill with new oil to the specified level near the filler plug hole.

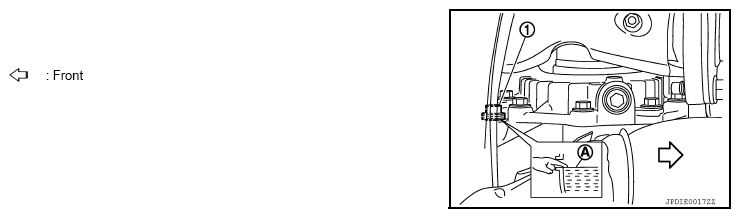

Fig 1: Checking Transfer Oil Level From Filler Plug Mounting Hole
Courtesy of NISSAN NORTH AMERICA, INC.

Oil grade and viscosity: Refer to "RECOMMENDED FLUIDS AND LUBRICANTS ".

Oil capacity: Refer to "GENERAL SPECIFICATIONS ".
Clean threads of filler plug (1) and transfer case.
Apply sealant to the threads of the filler plug (1), and install it. Tighten to specified torque. Refer to "EXPLODED VIEW ".
Use Genuine Silicone RTV Sealant or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
