System Diagram

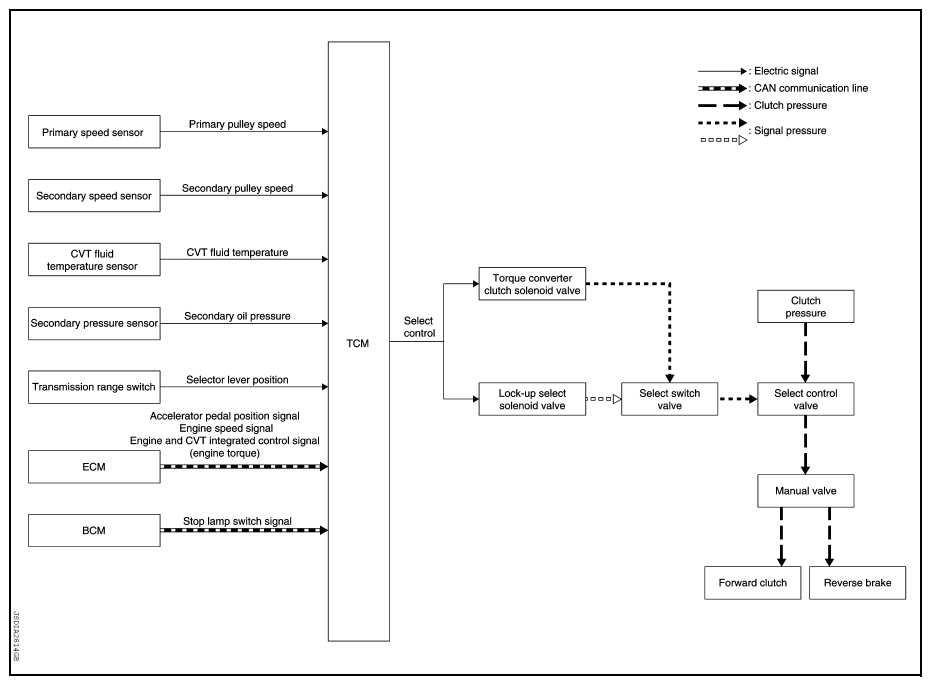

Fig 1: Select Control System Diagram

G08769343

Courtesy of NISSAN NORTH AMERICA, INC.
