Rear Shock Absorber
>>
Disassembly and Assembly
>>
Notes
Disassembly and Assembly: Notes

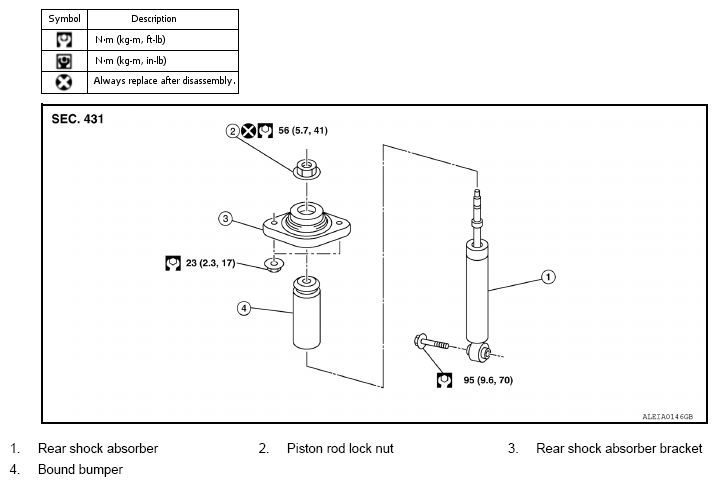

Fig 1: Disassembled View Of Rear Shock Absorber With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
