Rear Stabilizer Bar
>>
Exploded View
Exploded View

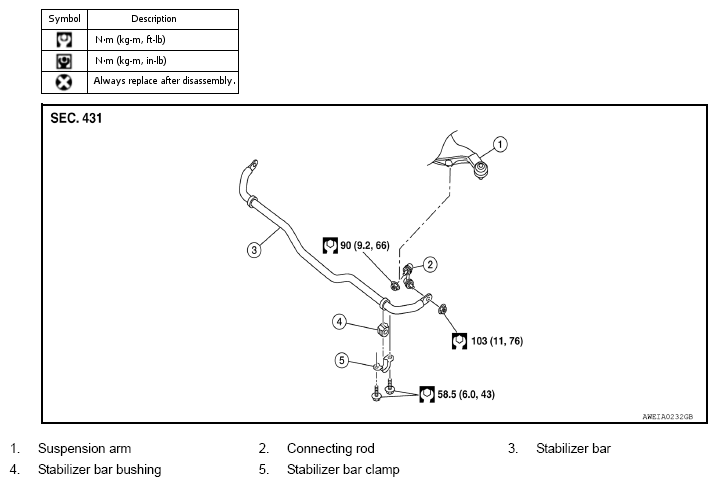

Fig 1: Exploded View Of Rear Stabilizer Bar With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
