Rear Lower Link & Coil Spring
>>
Exploded View
Exploded View

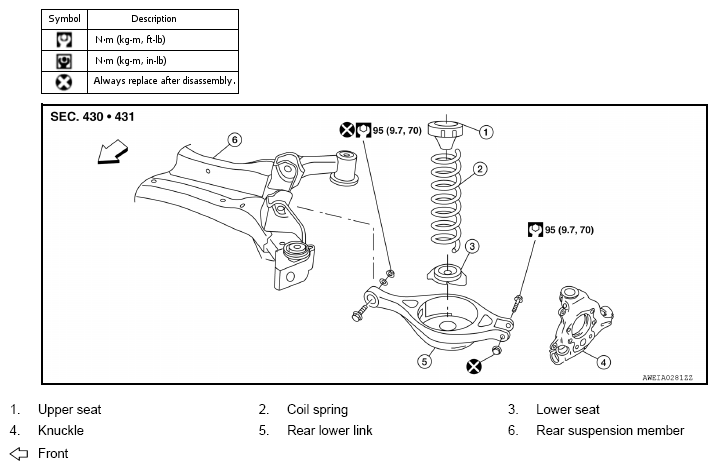

Fig 1: Exploded View Of Rear Lower Link & Coil Spring With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
