2-Pole Lift

WARNING:
  • When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
  • When setting the lift arm, never allow the arm to contact the brake tubes, brake cable, or fuel lines.

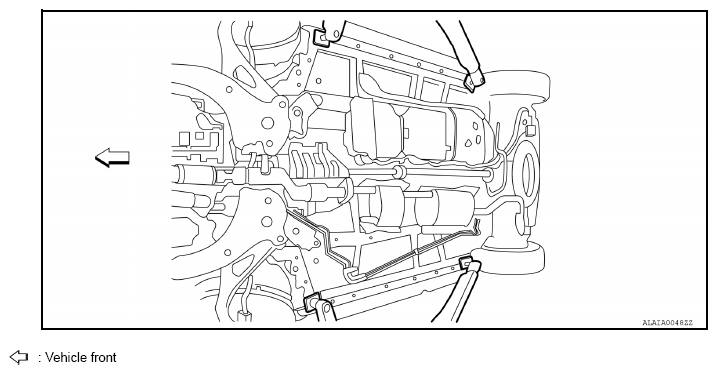

Fig 1: Locating Pole Lifting Points
G08768660Courtesy of NISSAN NORTH AMERICA, INC.
