System Description
>>
Lubrication System
>>
Lubrication Circuit
Lubrication Circuit

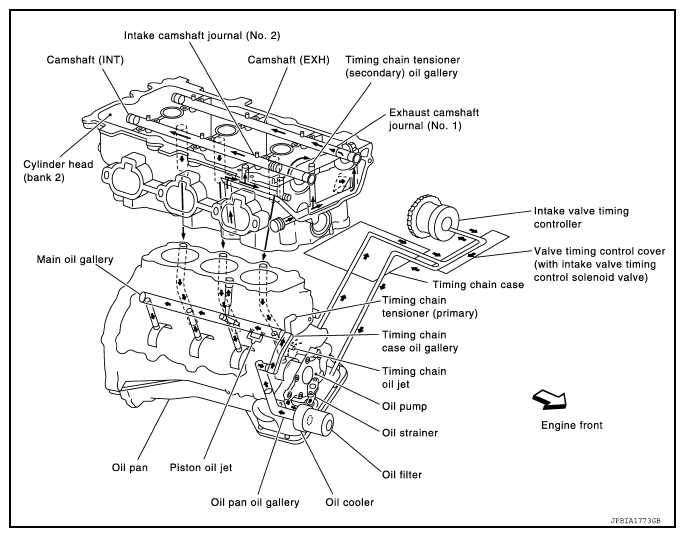

Fig 1: Lubrication System Lubricant Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
