Removal and Installation: Removal

  1. Remove the instrument lower panel LH. Refer to "REMOVAL AND INSTALLATION ".
  2. Release the pawl on each side of NATS antenna amp (1) and remove from the instrument lower panel LH (2).

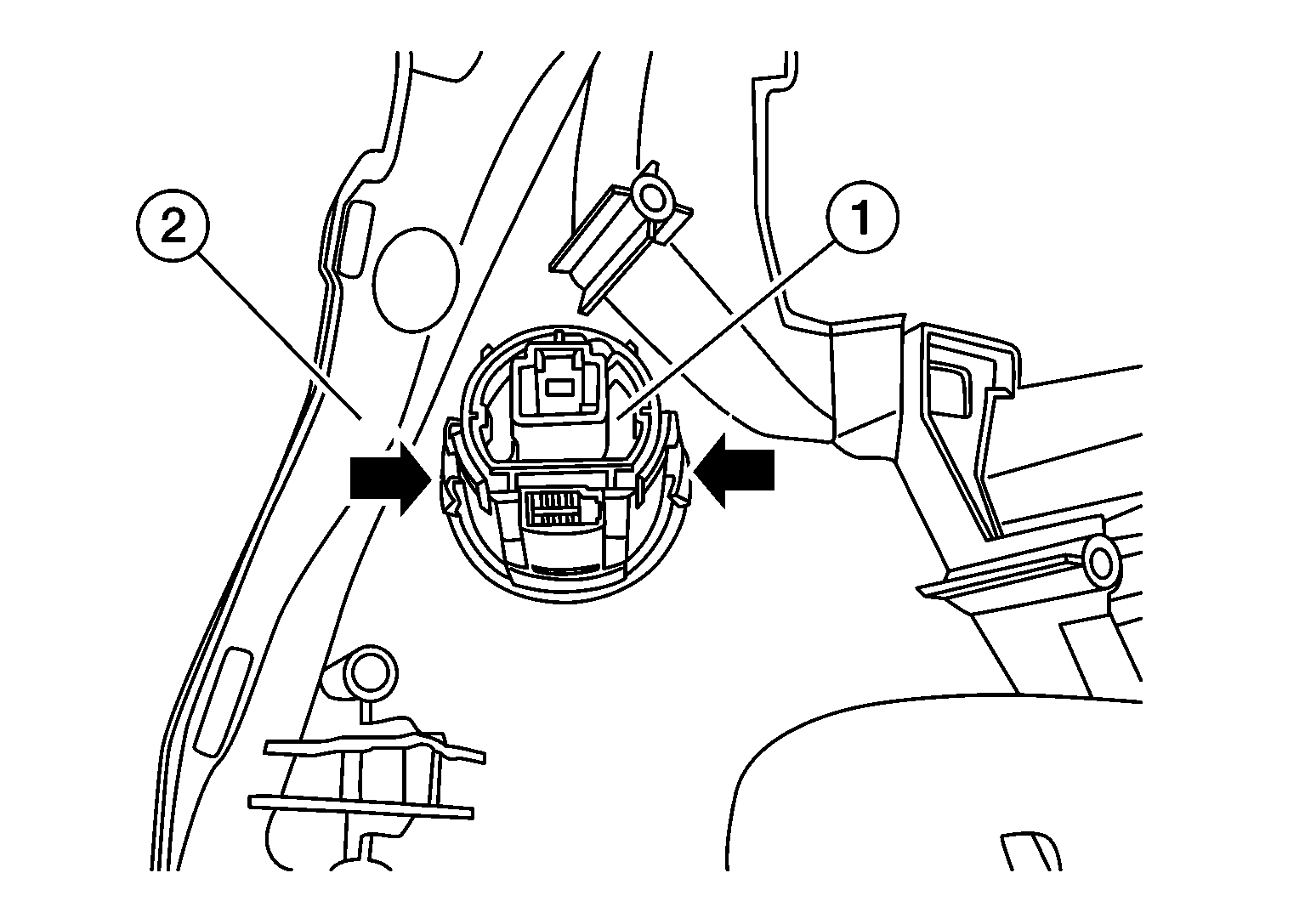

    Fig 1: Removing NATS Antenna Amp. From Instrument Lower Panel LH
    G08683349Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the pawl on each side and remove the push-button ignition switch from the NATS antenna amp.
