Front Wheel Hub
>>
Exploded View
Exploded View

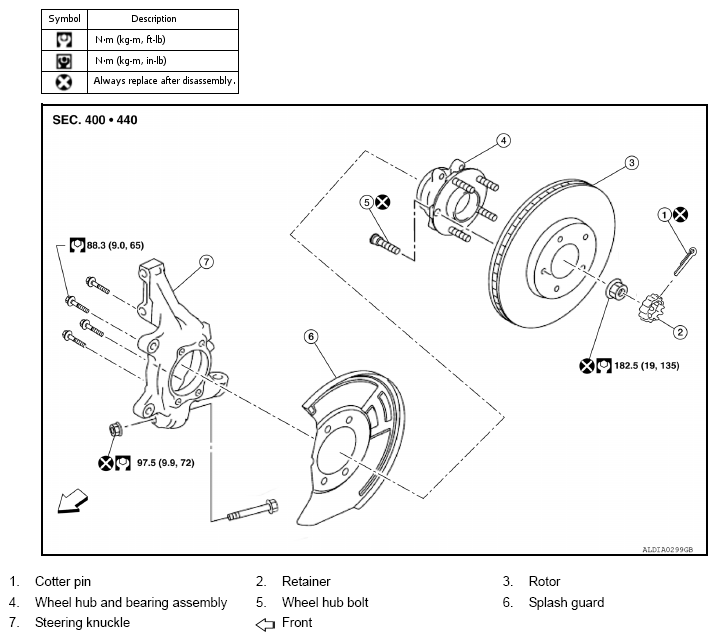

Fig 1: Exploded View Of Front Wheel Hub With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
