Exploded View
Exploded View

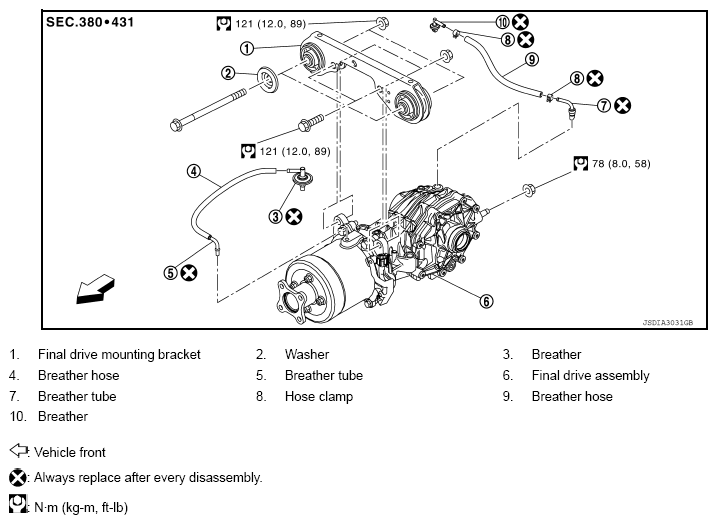

Fig 1: Exploded View Of Rear Final Drive Assembly With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
