Exploded View - Front Wheel Sensor
Exploded View - Front Wheel Sensor

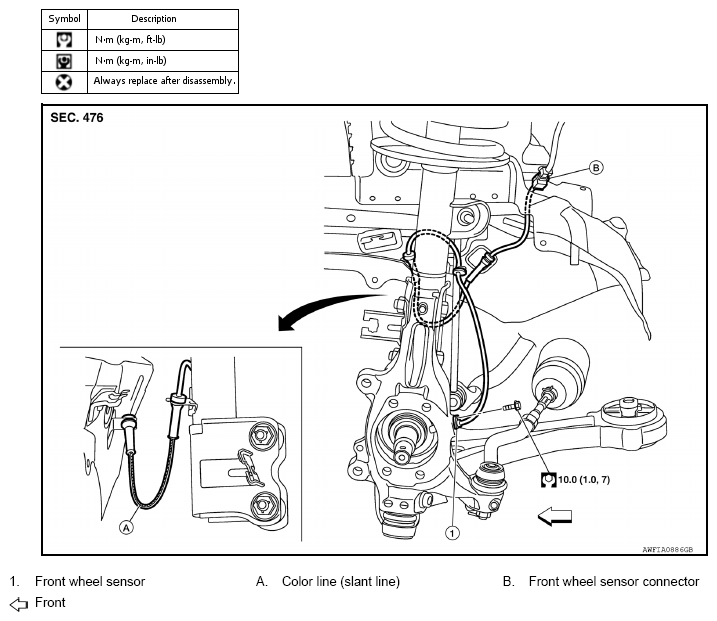

Fig 1: Exploded View Of Front Wheel Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
