Home >> Infiniti >> 2013 >> JX35 AWD >> Repair and Diagnosis >> Body & Frame >> Seats >> Automatic Drive Positioner >> Removal And Installation >> Automatic Drive Positioner Control Unit >> Removal and Installation >> Removal

Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove cluster lid C (multifunction switch). Refer to "REMOVAL AND INSTALLATION - CLUSTER LID C UPPER ".
  3. Remove the automatic drive positioner control unit screw (A).

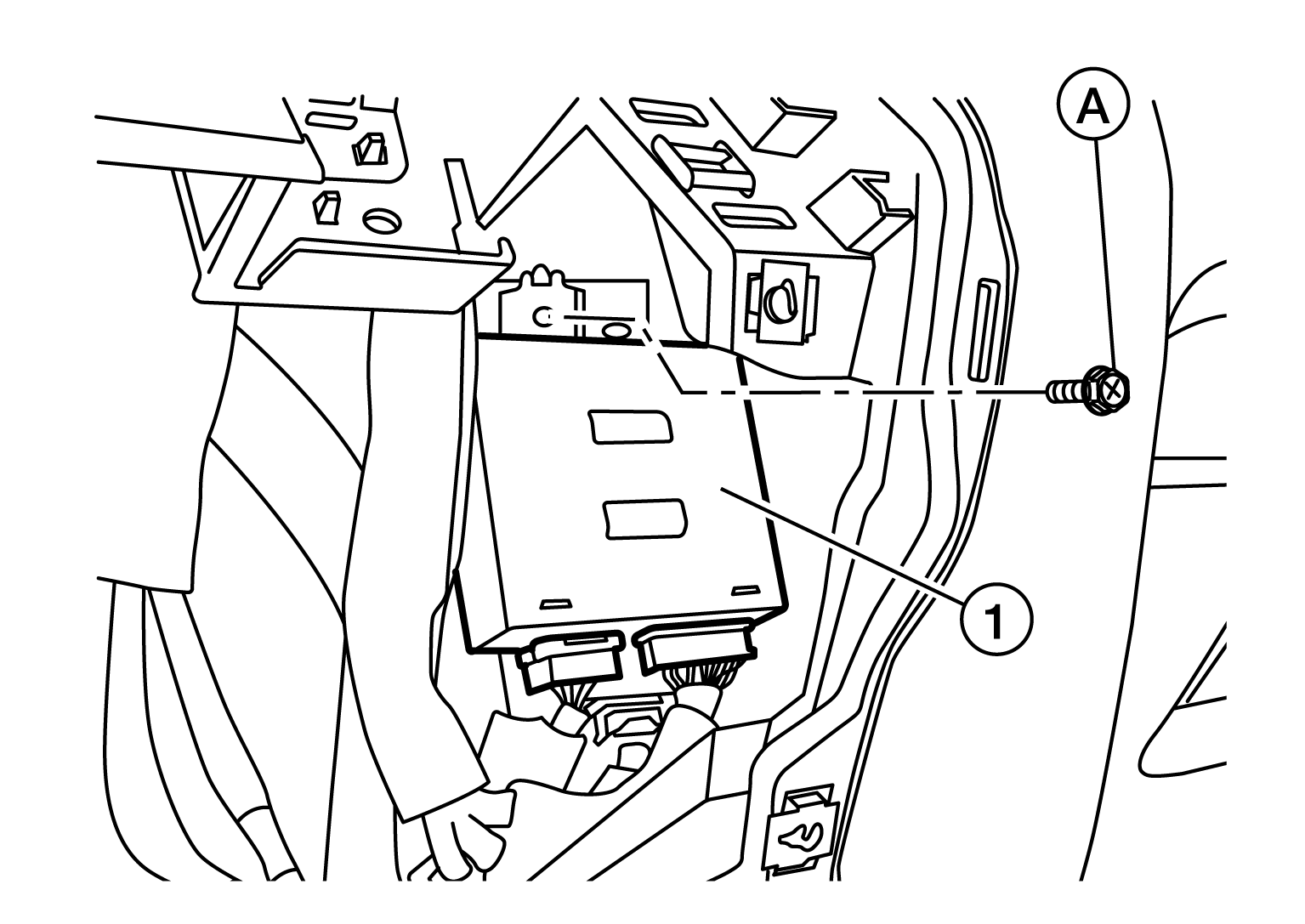

    Fig 1: Locating Automatic Drive Positioner Control Unit And Screw
    G08857422Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the two harness connectors from the automatic drive positioner control unit (1).
  5. Remove automatic drive positioner control unit (1).
