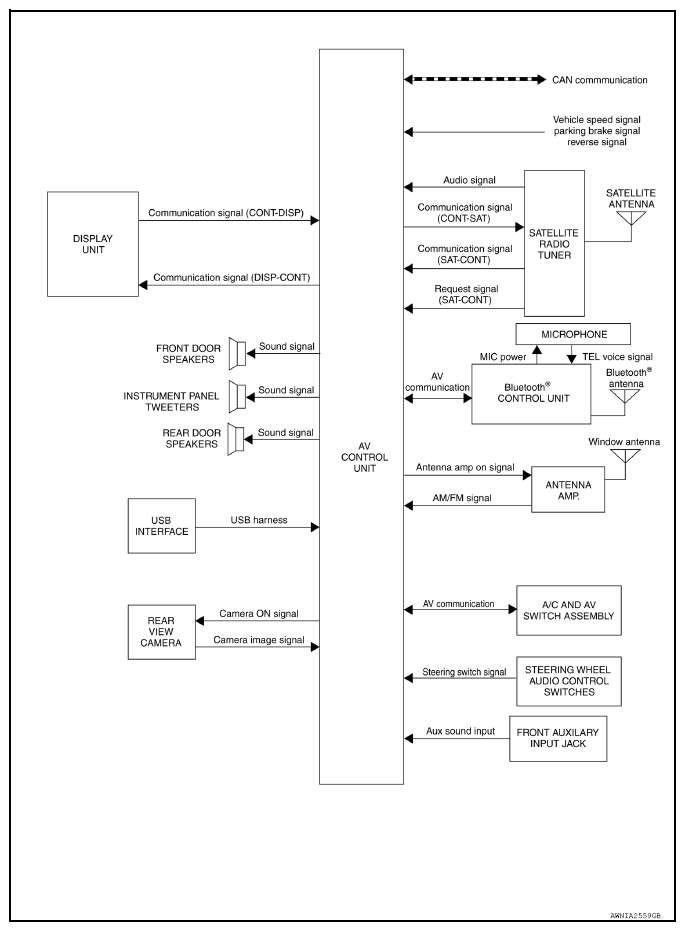

Home >> Infiniti >> 2013 >> JX35 AWD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Audio, Visual & Navigation System (Base Audio) >> System Description >> System >> Multi Av System >> MULTI AV SYSTEM: System Diagram
