COMBINATION SWITCH READING SYSTEM: System Diagram

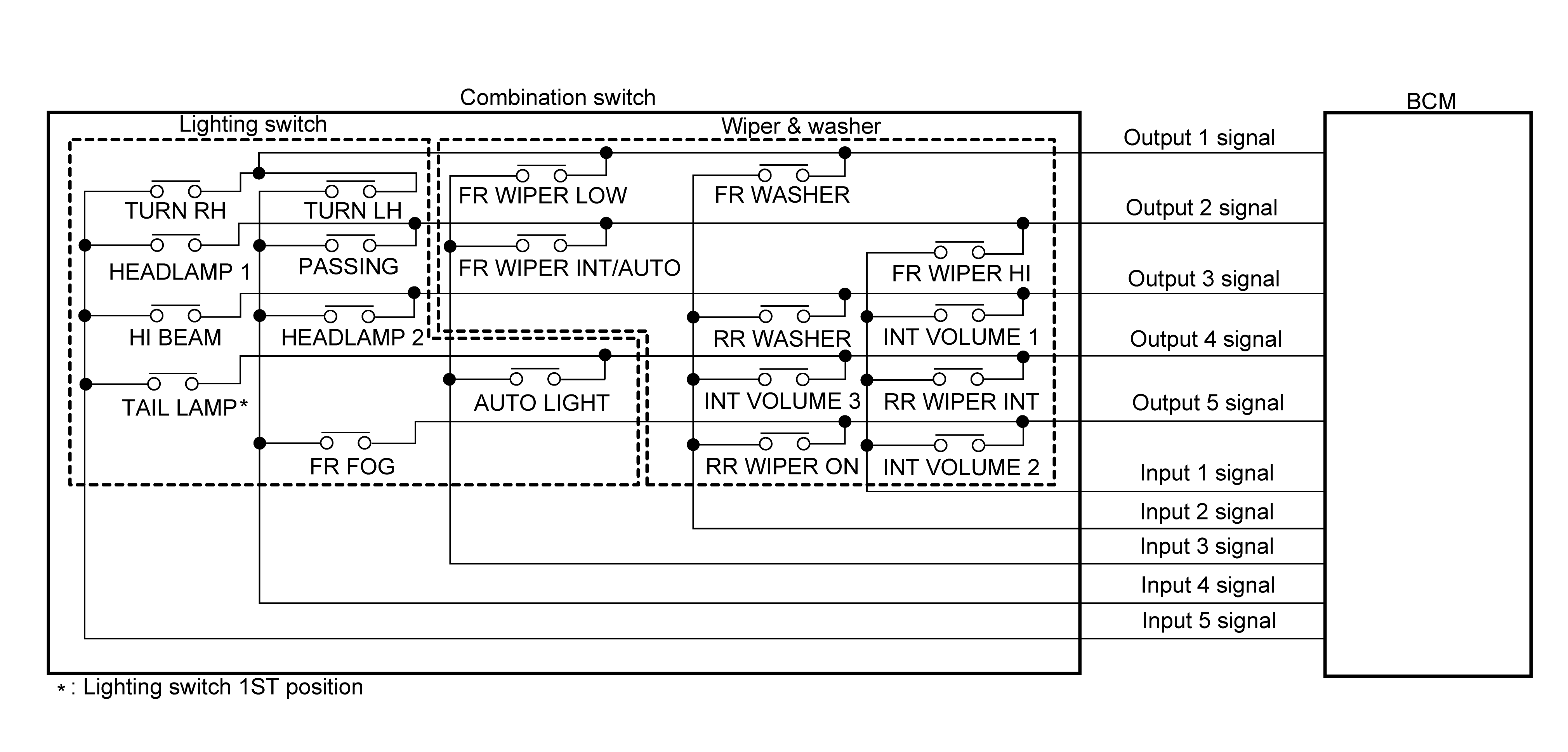

Fig 1: Combination Switch Reading System Diagram

G08857261

Courtesy of NISSAN NORTH AMERICA, INC.
