Overall Sequence

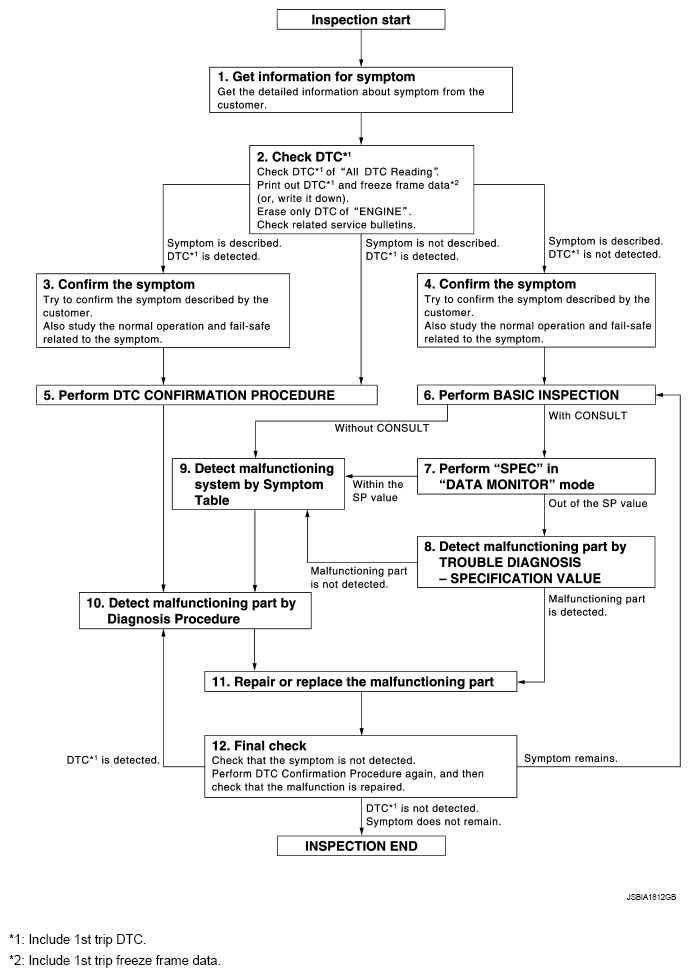

Fig 1: Diagnosis And Repair Work Flow Chart
G09009767Courtesy of NISSAN NORTH AMERICA, INC.
