Section 33 (Accelerator Control System (Convertible))
>>
Removal And Installation
>>
Accelerator Control System
>>
Exploded View
Exploded View
WARNING:
This page is about a different variant/trim than selected.

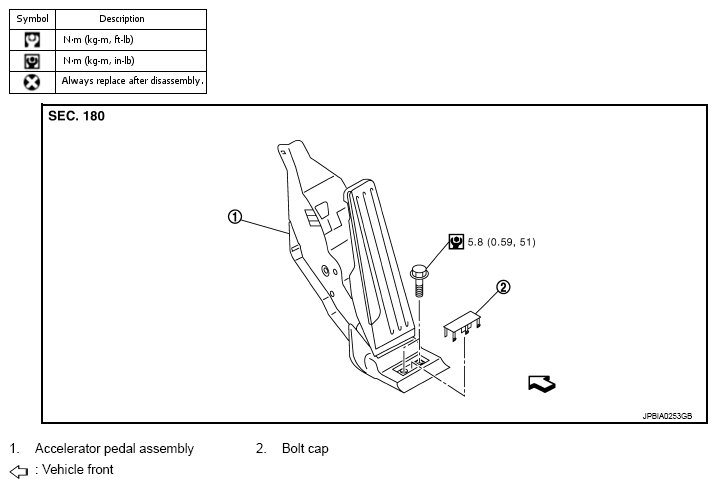

Fig 1: Exploded View Of Accelerator Control System With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
