Component Parts Location

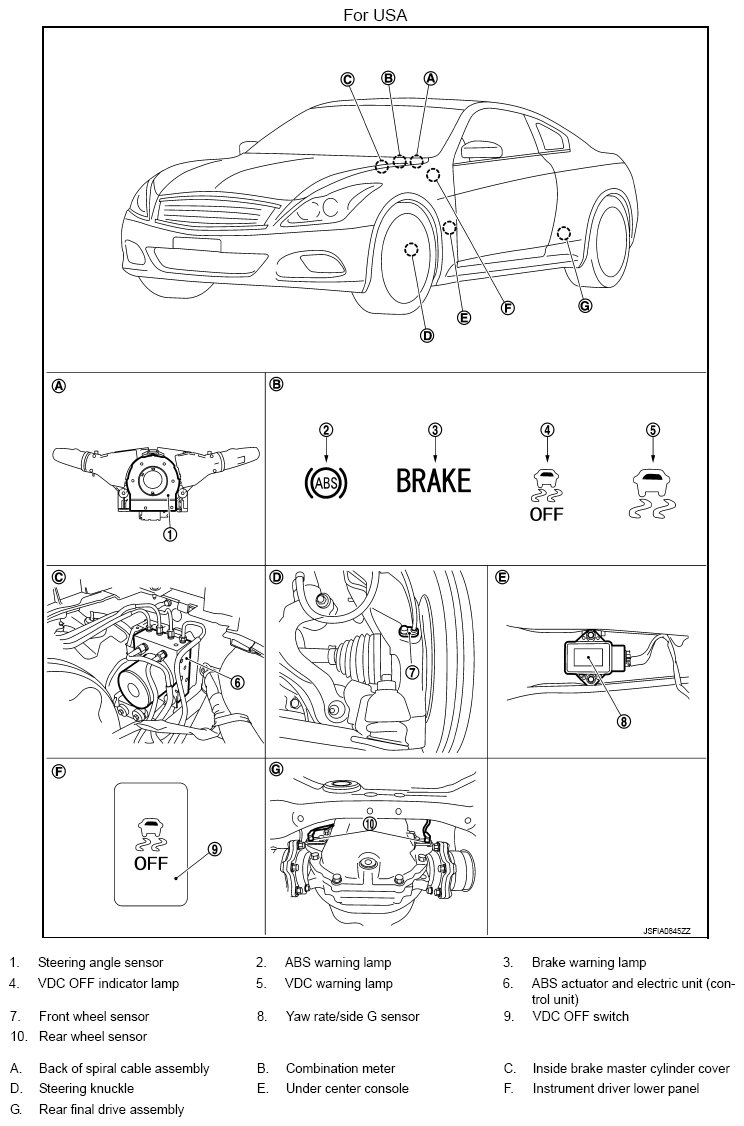

Fig 1: Identifying TCS System Component Parts Location (For USA)
G08736851Courtesy of NISSAN NORTH AMERICA, INC.

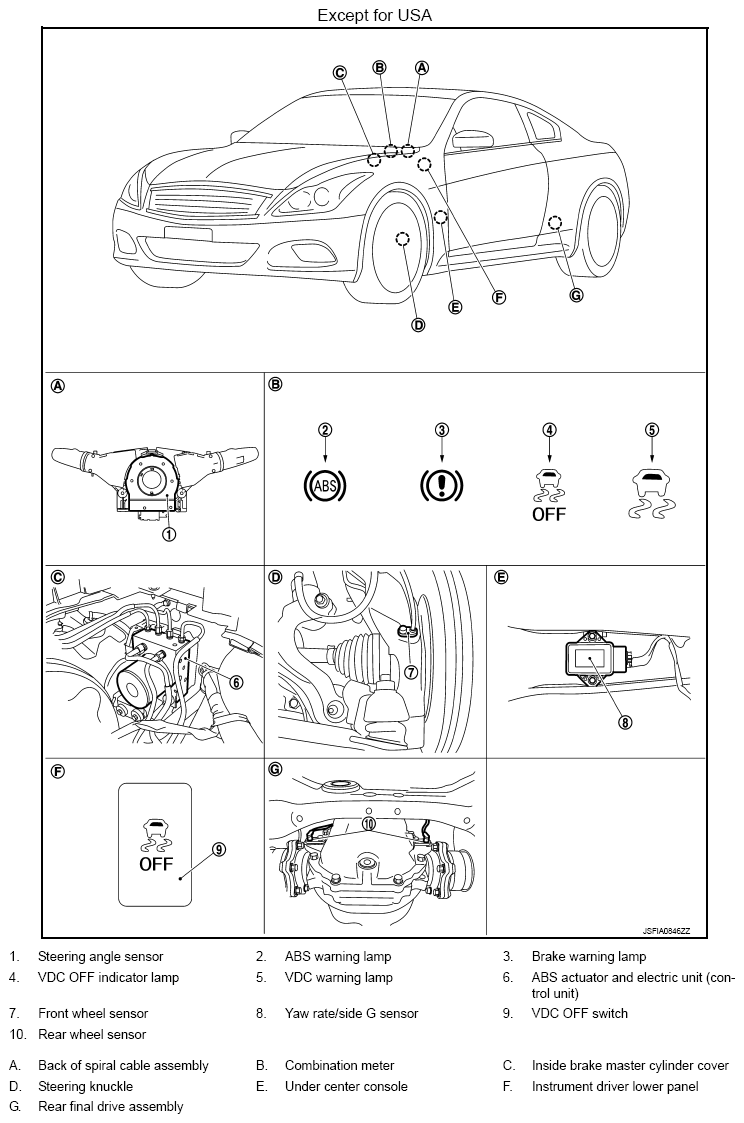

Fig 2: Identifying TCS System Component Parts Location (Except For USA)
G08736852Courtesy of NISSAN NORTH AMERICA, INC.
