Component Parts Location

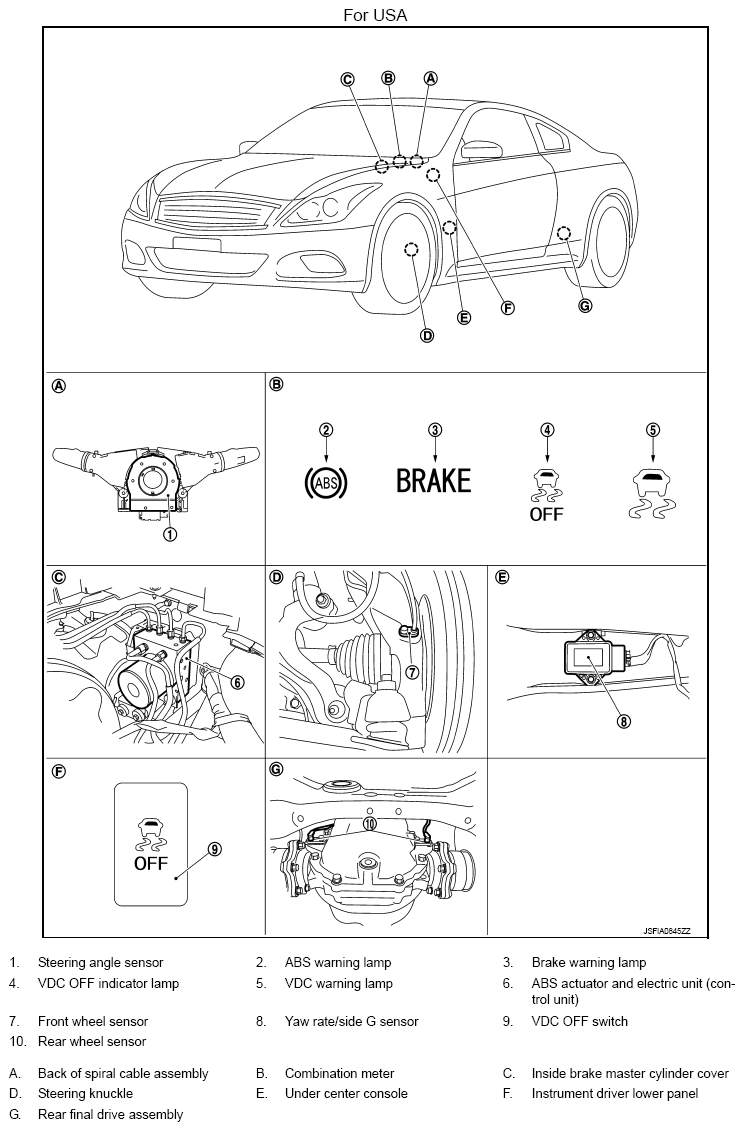

Fig 1: Identifying ABS System Component Parts Location (For USA)
G08736854Courtesy of NISSAN NORTH AMERICA, INC.

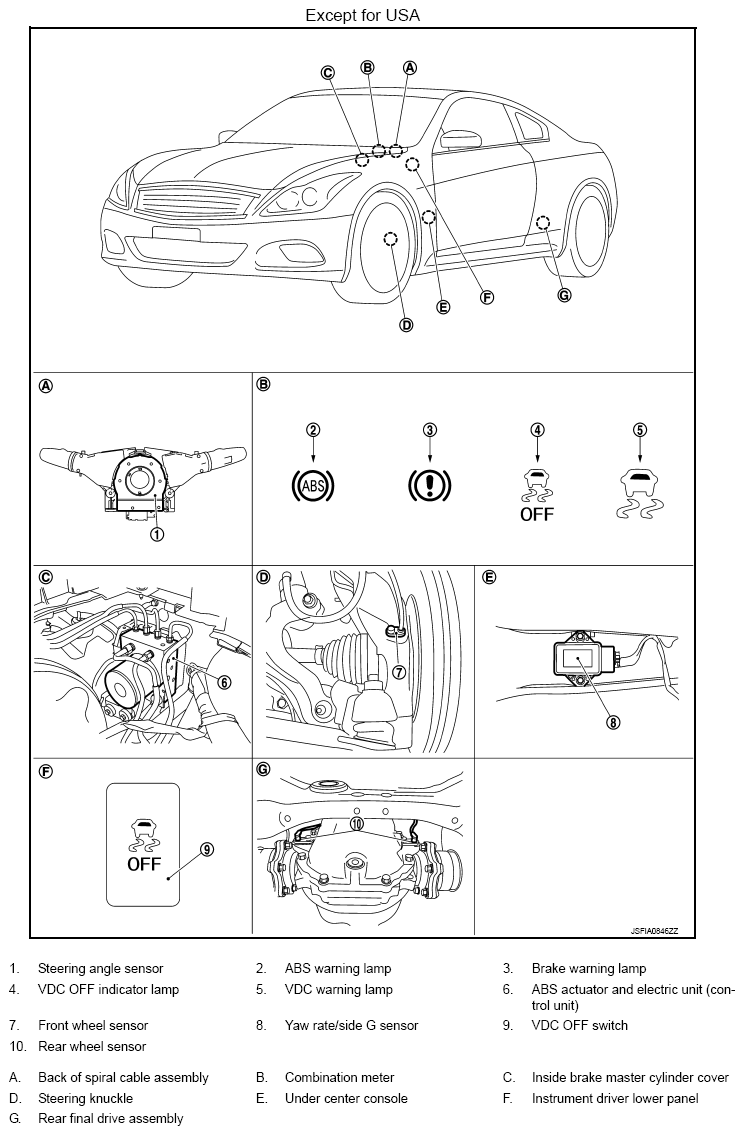

Fig 2: Identifying ABS System Component Parts Location (Except For USA)
G08736855Courtesy of NISSAN NORTH AMERICA, INC.
