Rear Suspension (Convertible)
>>
Removal And Installation
>>
Radius Rod
>>
Exploded View
Exploded View

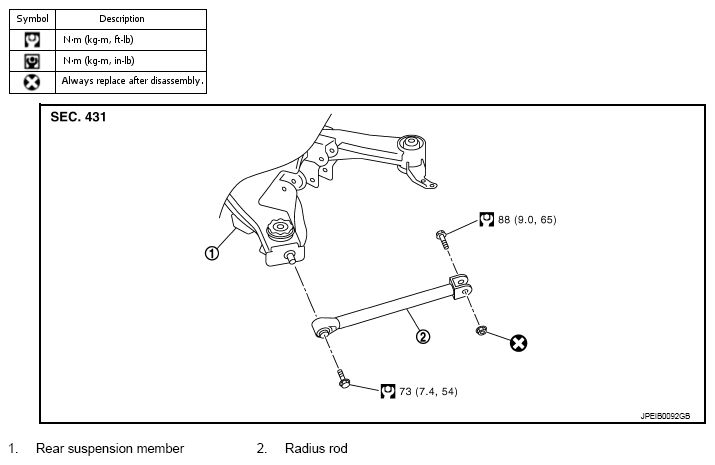

Fig 1: Exploded View Of Radius Rod With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
