DRIVE BELT: Exploded View

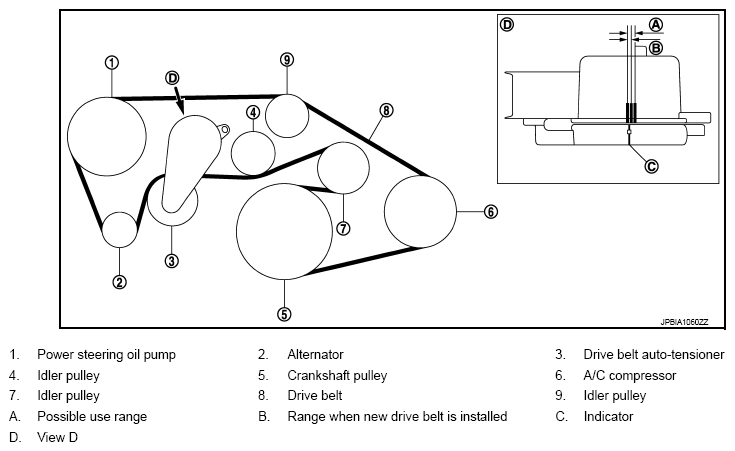

Fig 1: Exploded View Of Drive Belt Routing

G08741375

Courtesy of NISSAN NORTH AMERICA, INC.
