Connector Symbols

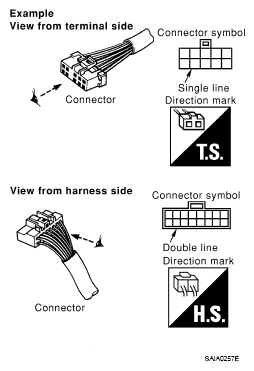

Most of connector symbols in wiring diagrams are shown from the terminal side.

• Connector symbols shown from the terminal side are enclosed by a single line and followed by the direction mark.
• Connector symbols shown from the harness side are enclosed by a double line and followed by the direction mark.
• Certain systems and components, especially those related to OBD, may use a new style slide-locking type harness connector. For description and how to disconnect, refer to "HARNESS CONNECTOR ".
  Fig 1: Identifying Connector Symbols

  Courtesy of NISSAN NORTH AMERICA, INC.

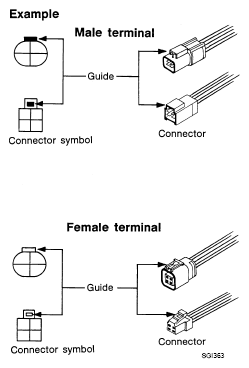

• Male and female terminals

  Connector guides for male terminals are shown in black and female terminals in white in wiring diagrams.

  Fig 2: Identifying Male And Female Terminals

  Courtesy of NISSAN NORTH AMERICA, INC.
