Exploded View

WARNING: This page is about a different variant/trim than selected.

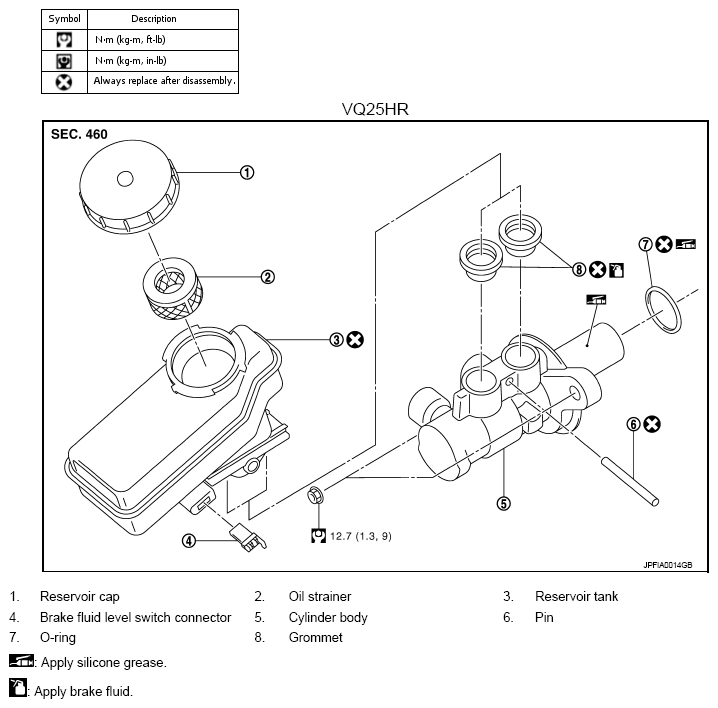

Fig 1: Exploded View Of Brake Master Cylinder (VQ25HR) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.

Fig 2: Exploded View Of Brake Master Cylinder (VQ37VHR) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
