Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

WARNING: This page is about a different variant/trim than selected.

For connector terminal arrangements, harness layouts, and letters in a (option abbreviation; if not described in wiring diagram), refer to "CONNECTOR INFORMATION ".

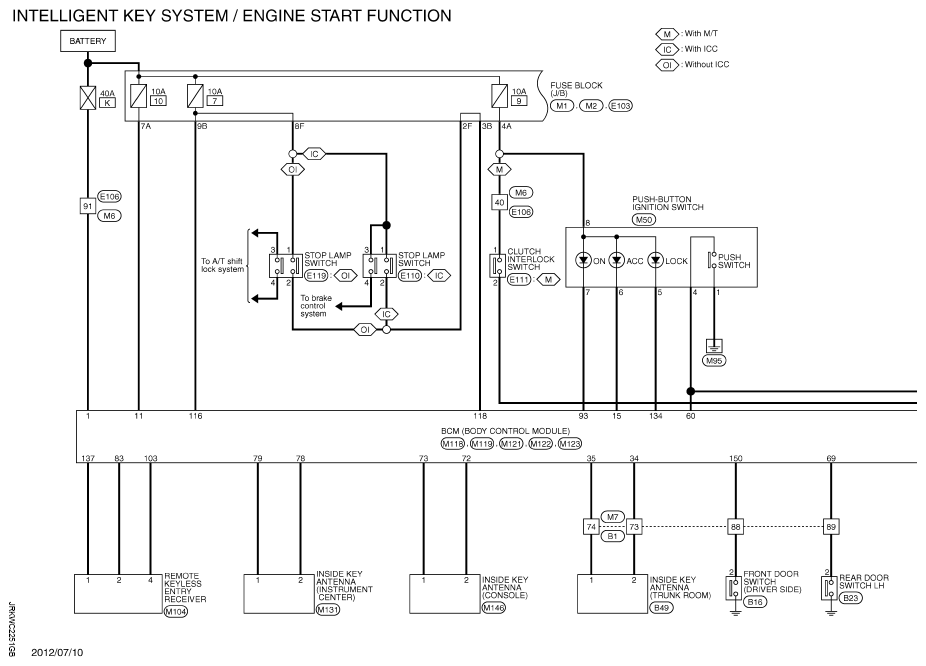

Fig 1: Intelligent Key System/Engine Start Function Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

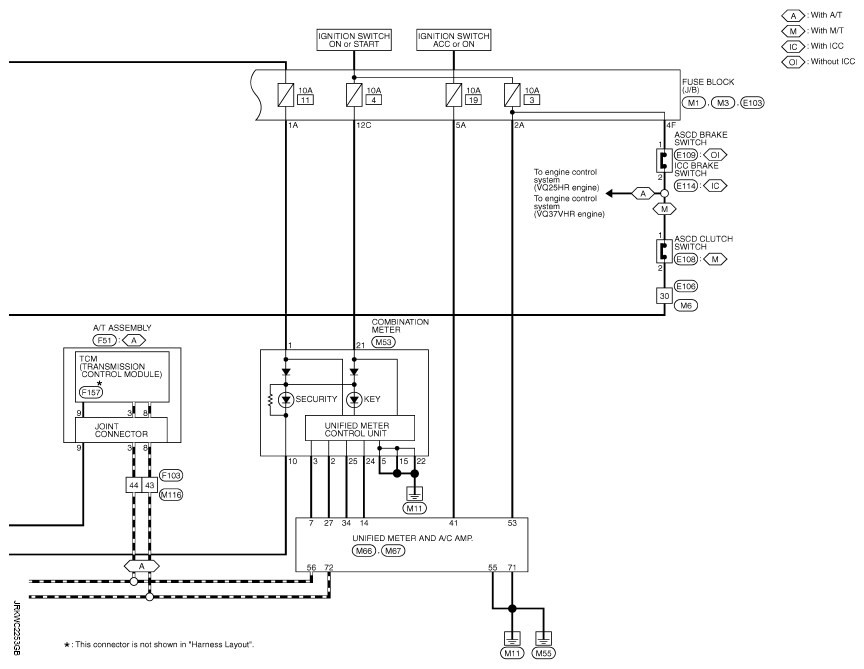

Fig 2: Intelligent Key System/Engine Start Function Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

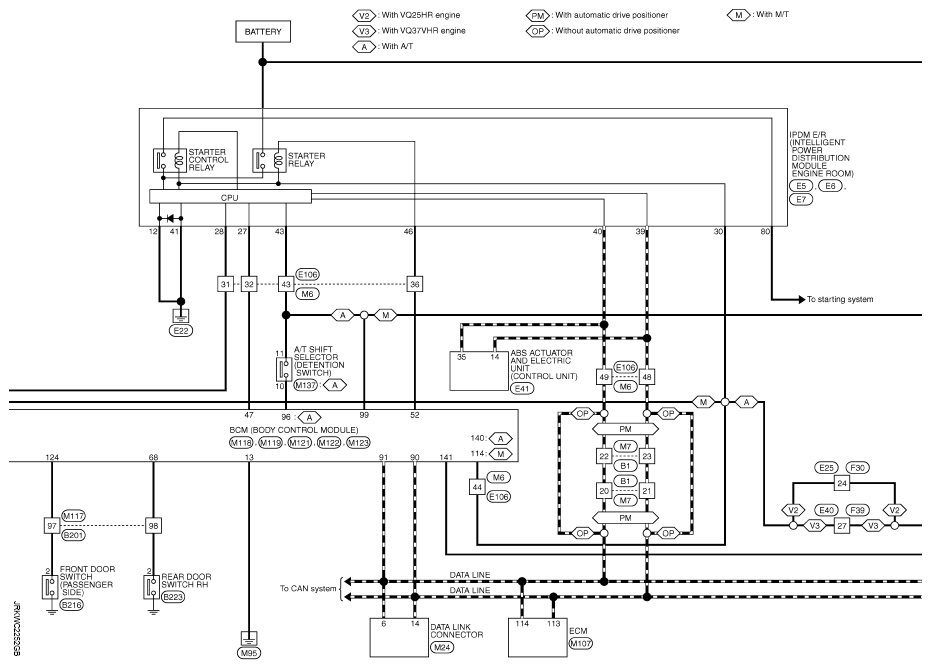

Fig 3: Intelligent Key System/Engine Start Function Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.
