Exploded View: Disassembly

WARNING: This page is about a different variant/trim than selected.

Type: S114-932

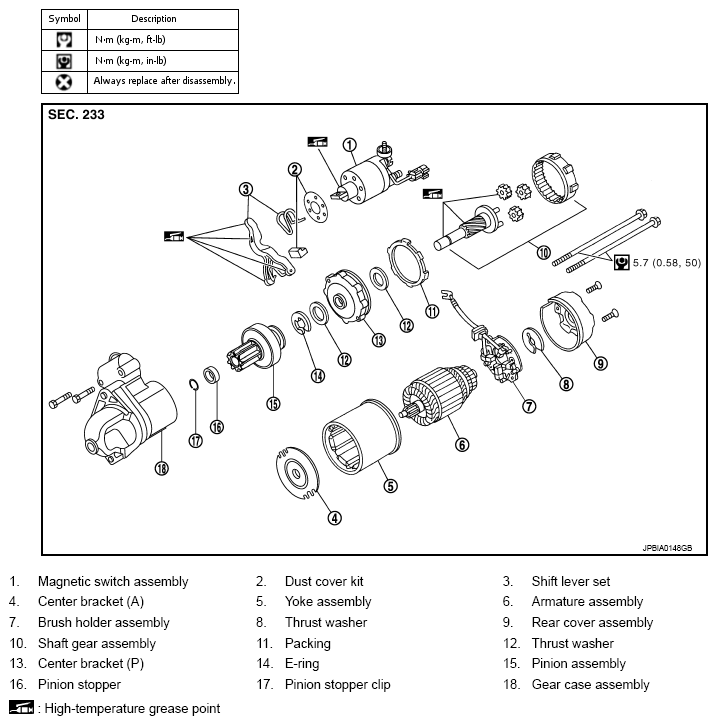

Fig 1: Disassembled View Of Starter Motor With Torque Specifications
G09007320Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
