Section 19 (Engine Lubrication System (Sedan))
>>
System Description
>>
Description
>>
Engine Lubrication System
Engine Lubrication System
WARNING:
This page is about a different variant/trim than selected.

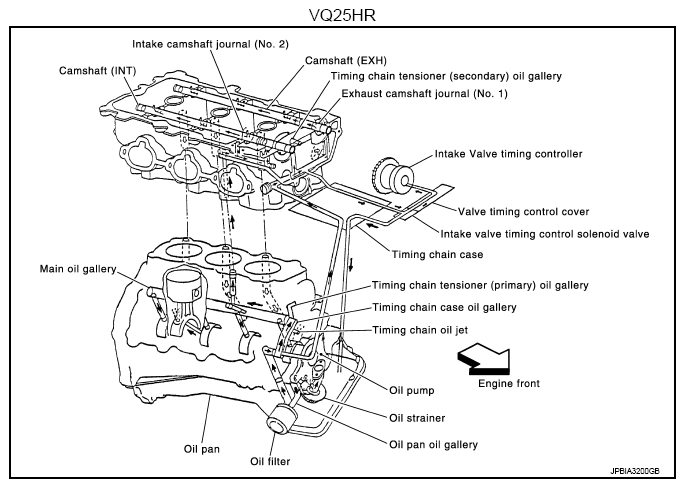

Fig 1: Engine Lubrication System Operation Diagram (VQ25HR)
Courtesy of NISSAN NORTH AMERICA, INC.

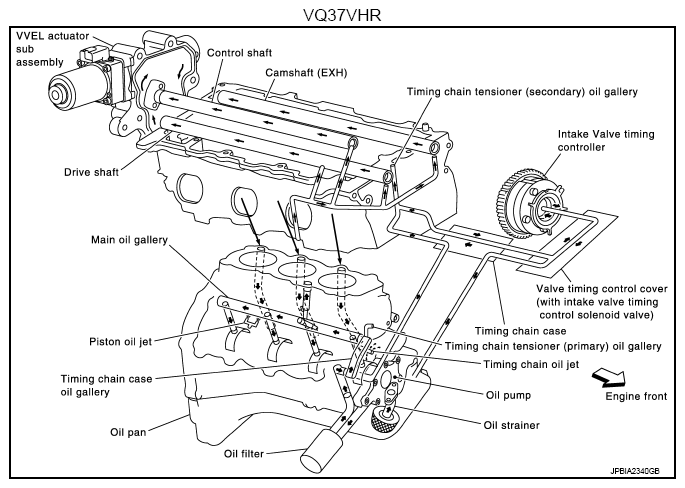

Fig 2: Engine Lubrication System Operation Diagram (VQ37VHR)
Courtesy of NISSAN NORTH AMERICA, INC.
