Separation Work

  1. Install engine slingers into front of cylinder head (bank 1) and rear of cylinder head (bank 2).

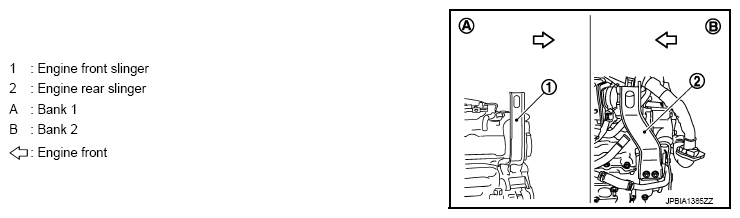

    Fig 1: Identifying Engine Front And Rear Engine Slingers
    G08739347Courtesy of NISSAN NORTH AMERICA, INC.

    Slinger bolts:

    Torque Value: 28.0 N.m (2.9 kg-m, 21 ft-lb)

  2. Remove power steering oil pump from engine side. Refer to "EXCEPT FOR SPORT MODELS: EXPLODED VIEW " or "SPORT MODELS: EXPLODED VIEW ".
  3. Remove engine mounting insulators (RH and LH) under side nuts with power tool.
  4. Lift with hoist and separate the engine and the transmission assembly from front suspension member.
    CAUTION:
    • Before and during this lifting, always check that any harnesses are left connected.
    • Never damage engine mounting insulator and avoid oil/grease smearing or spills onto engine mounting insulator.
  5. Remove alternator. Refer to "EXPLODED VIEW ".
  6. Remove starter motor. Refer to "EXPLODED VIEW ".
  7. Remove crankshaft position sensor. Refer to "EXPLODED VIEW ".
    CAUTION:
    • Handle crankshaft position sensor carefully and avoid impacts.
    • Never disassemble.
    • Never place crankshaft position sensor in a location where it is exposed to magnetism.
  8. Separate the engine from the transmission assembly. Refer to "EXPLODED VIEW " (M/T models) or "EXPLODED VIEW " (A/T models).
  9. Remove each engine mounting insulator and each engine mounting bracket from the engine with power tool.
