Removal And Installation
>>
Front Seat
>>
Exploded View
>>
Driver's Seat
Driver's Seat

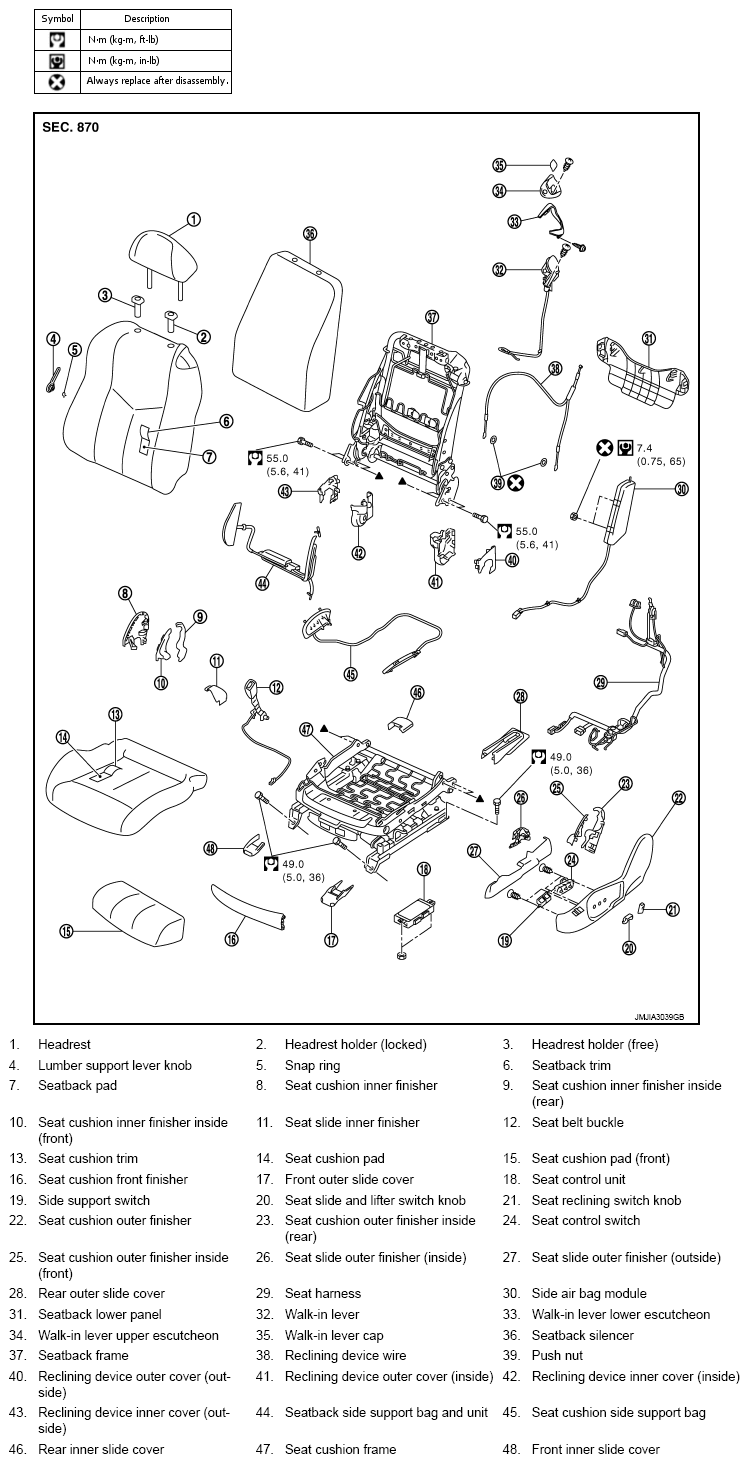

Fig 1: Exploded View Of Front Seat With Torque Specifications (Driver's Seat)
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
