MANUAL MODE: System Diagram

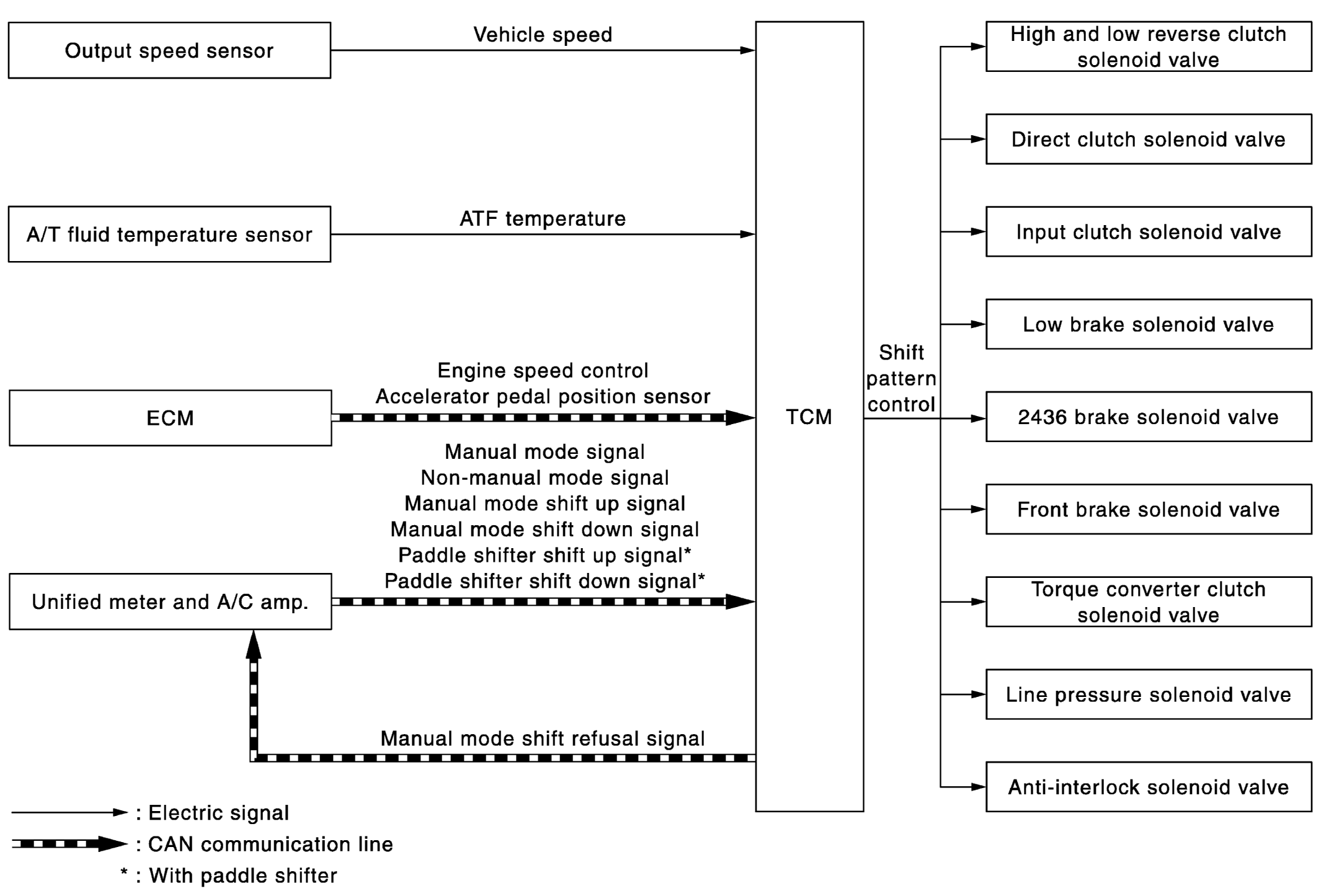

Fig 1: Manual Mode System Diagram

G06621706

Courtesy of NISSAN NORTH AMERICA, INC.
