ASC (ADAPTIVE SHIFT CONTROL): System Diagram

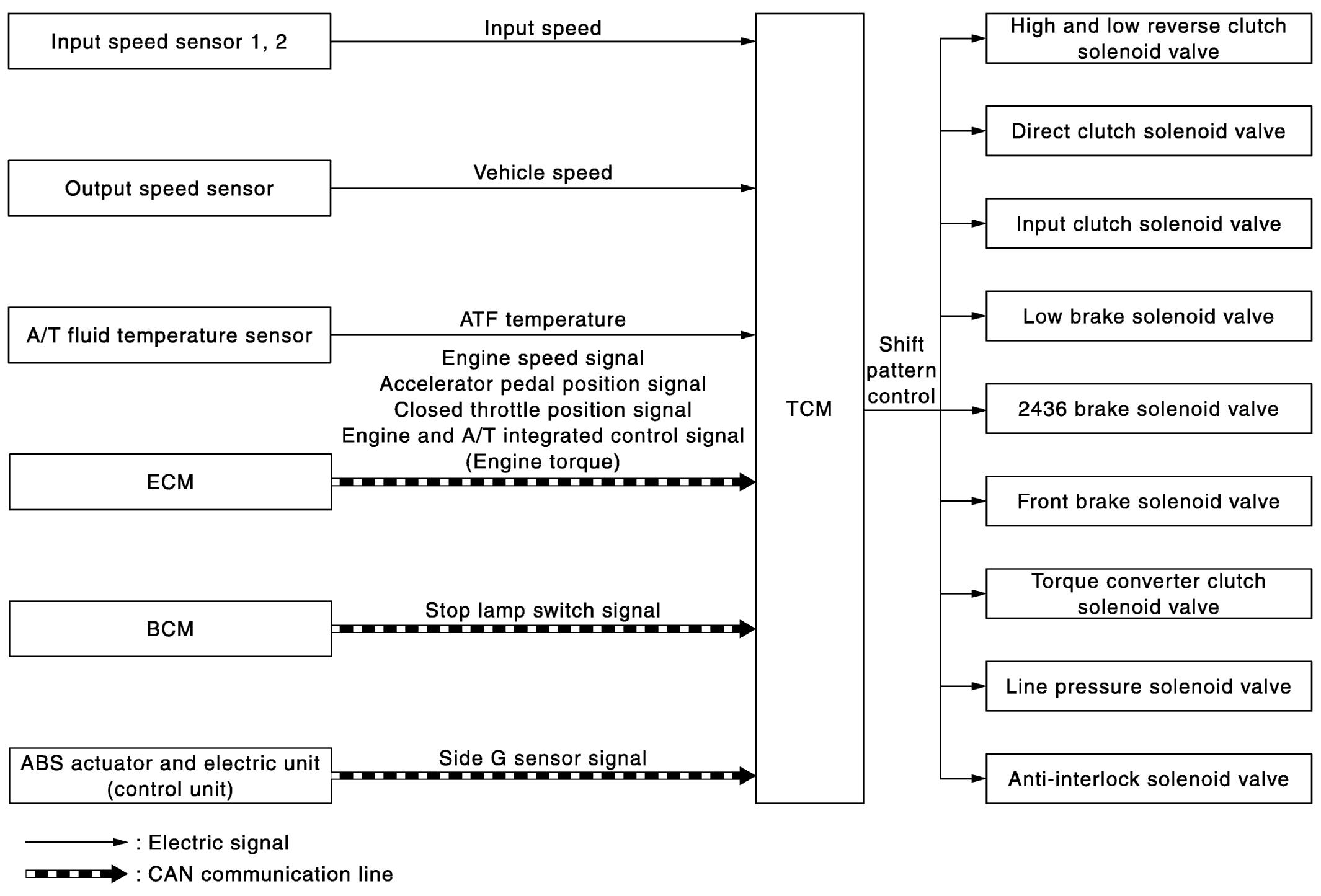

Fig 1: Adaptive Shift Control System Diagram

G05969736

Courtesy of NISSAN NORTH AMERICA, INC.
