WITH ELECTRIC MOTOR: Exploded View

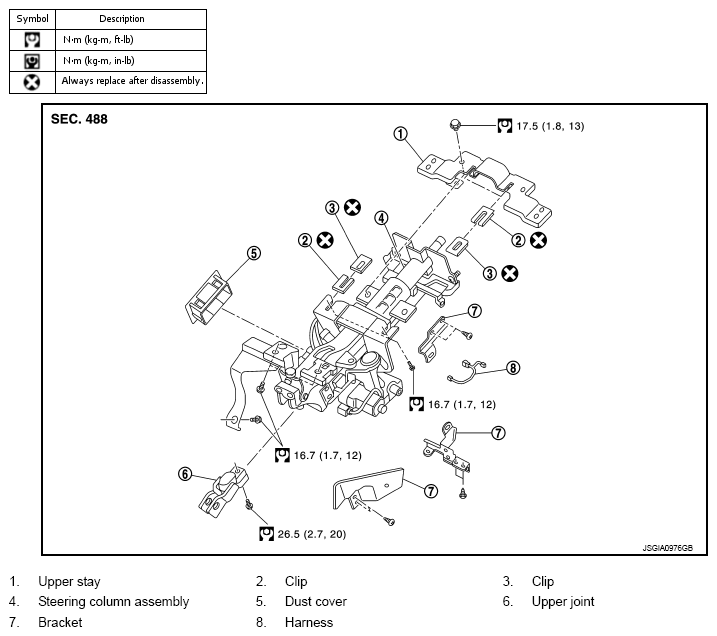

Fig 1: Exploded View Of Steering Column (With Electric Motor) With Torque Specifications
G08736904Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols in the figure.
