Passenger Compartment

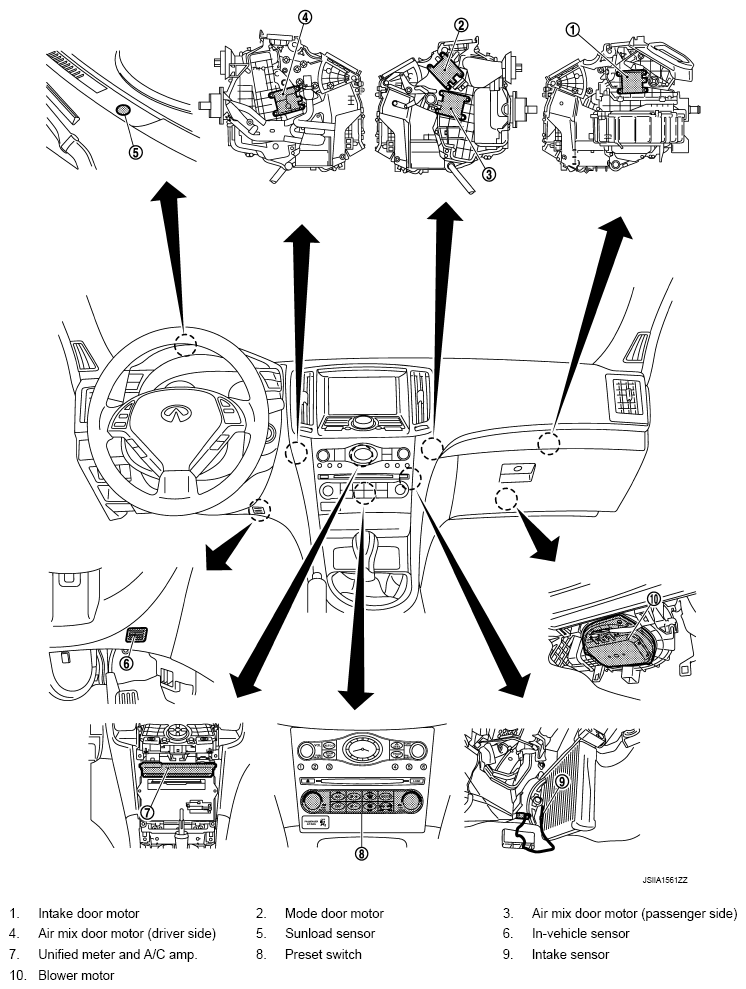

Fig 1: Heater & Air Conditioning Control System Passenger Compartment Components Location
G08737106Courtesy of NISSAN NORTH AMERICA, INC.
