M/T: System Diagram

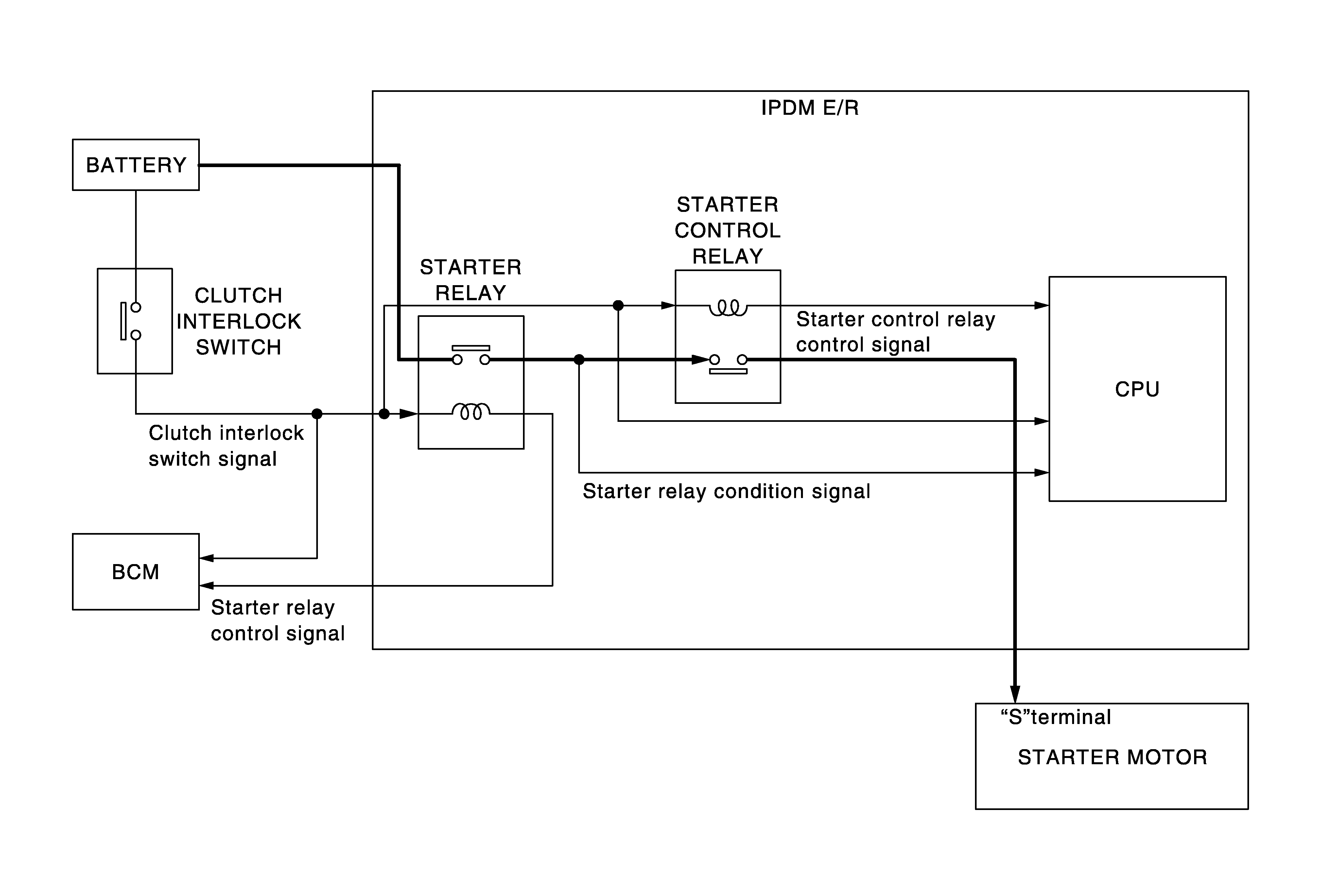

Fig 1: Starting (M/T) System Diagram

G05972976

Courtesy of NISSAN NORTH AMERICA, INC.
