A/T MODELS: Exploded View

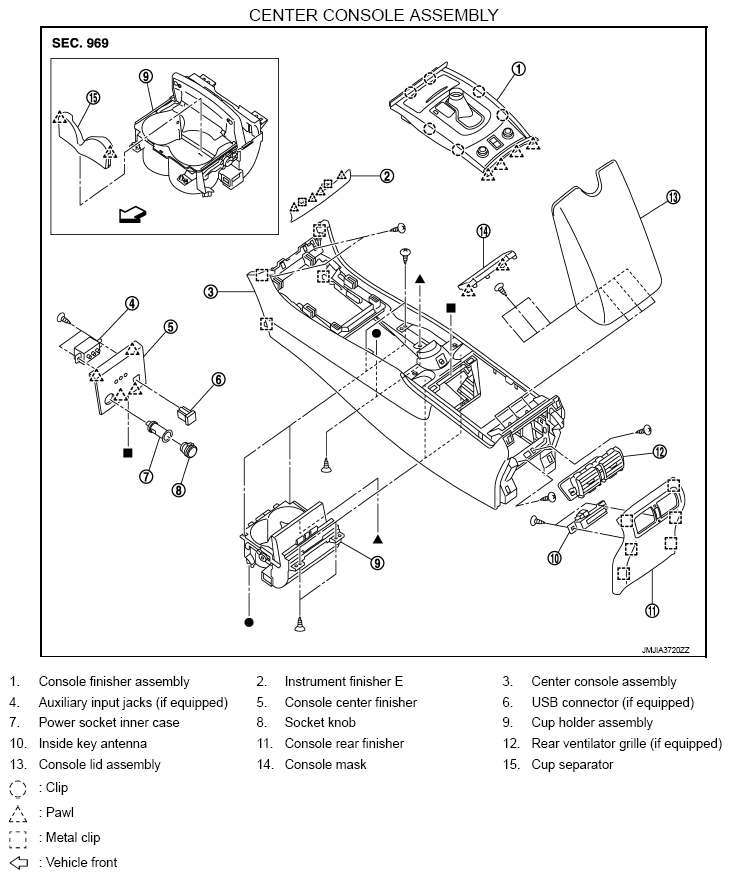

Fig 1: Exploded View Of Center Console Assembly (A/T Models)
G08737338Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Exploded View Of Console Finisher Assembly (A/T Models)
G08737339Courtesy of NISSAN NORTH AMERICA, INC.
