A/T: Exploded View

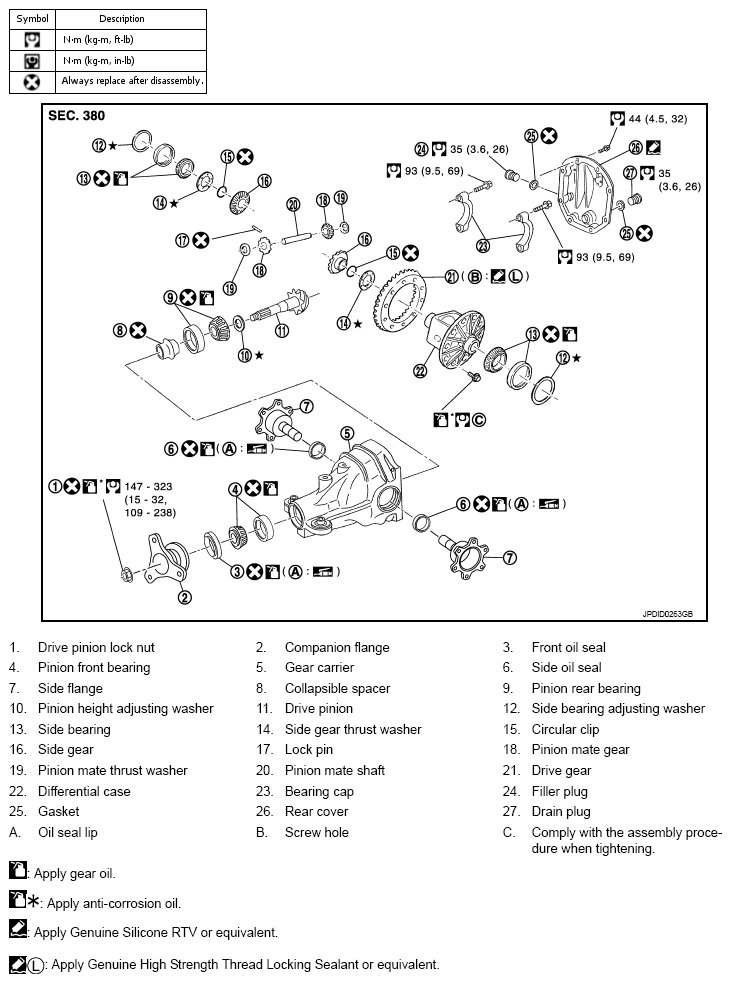

Fig 1: Exploded View Of Differential Assembly With Torque Specifications (A/T)
G08736572Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described on the above.
