System Diagram

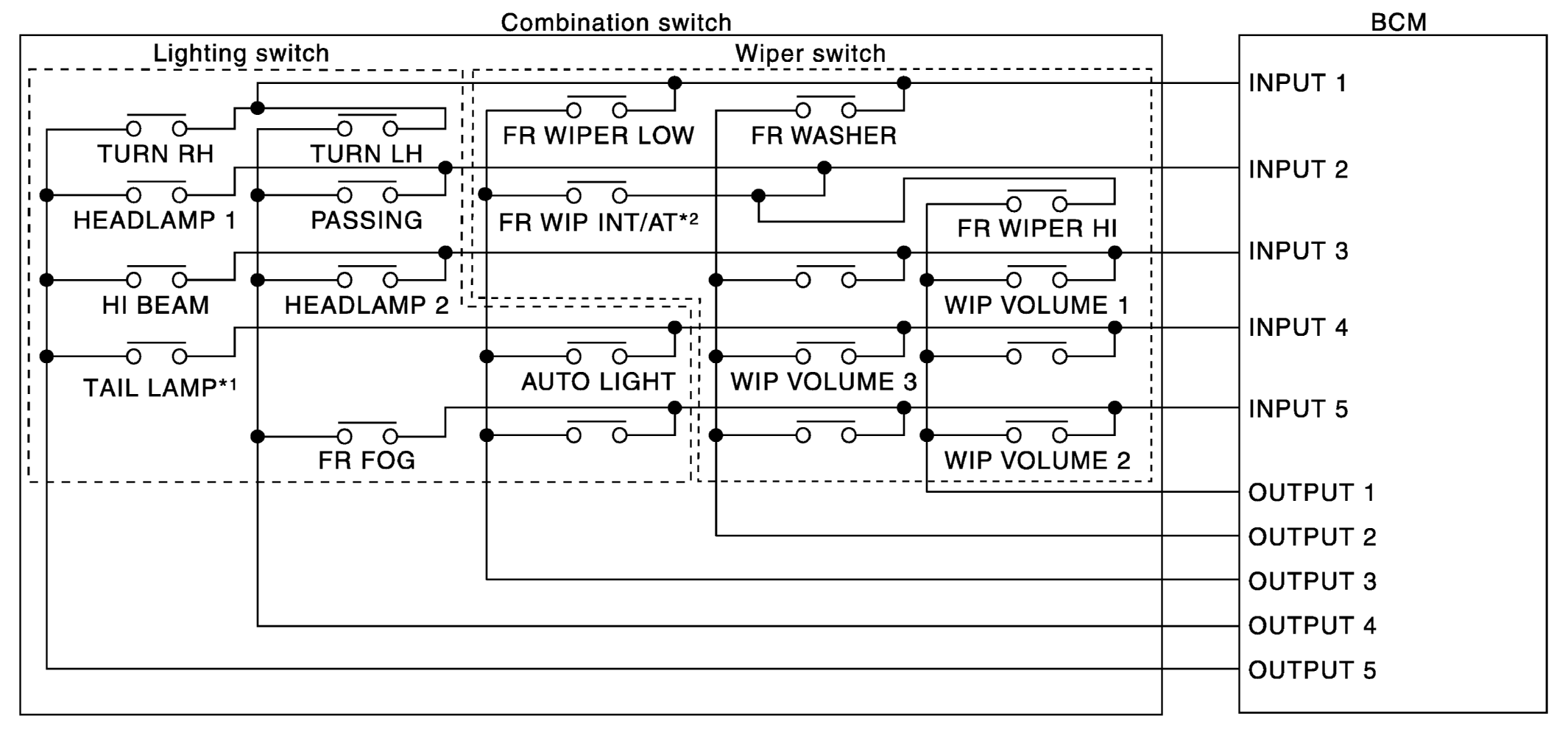

Fig 1: Combination Switch Reading System Diagram
G05974870Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
  • *1: TAIL LAMP switch links lighting switch 1ST position.
  • *2: "FR WIP INT/AT" is FR WIPER INT/AUTO.
