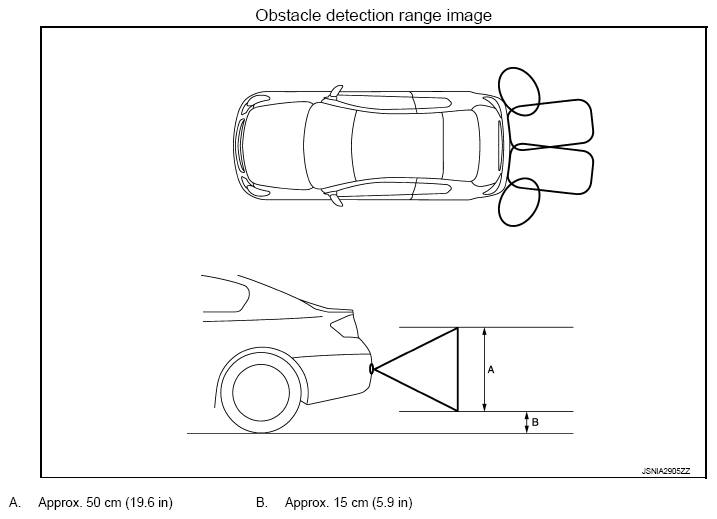

Obstacle Detection Distance: Notes
- The sonar control unit controls the obstacle detection distance. The detection distance differs between the corner sensor and the center sensor.
- The sonar control unit controls a warning buzzer cycle which changes in 4 levels (for center) or in 3 levels (for corner), according to the detection distance.
- The detection condition setting is adjustable in 4 levels with CONSULT. Refer to "CONSULT FUNCTION ".
- CONSULT enables the center sensor (rear) not to detect the range of 40 cm (15.75 in) or less to prevent from the trailer hitch vehicle detection error. Refer to "CONSULT FUNCTION ".
DETECTION DISTANCE (DEFAULT VALUE)
| Warning item | Corner sensor | Center sensor |
|---|---|---|
| First warning | - | 60 - 100 cm (23.6 - 39.3 in) |
| Second warning | 50 - 60 cm (19.6 - 23.6 in) | 50 - 60 cm (19.6 - 23.6 in) |
| Third warning | 30 - 50 cm (11.8 - 19.6 in) | 30 - 50 cm (11.8 - 19.6 in) |
| Fourth warning | Less than 30 cm (11.8 in) | Less than 30 cm (11.8 in) |
