Front Oil Seal
>>
Exploded View
Exploded View

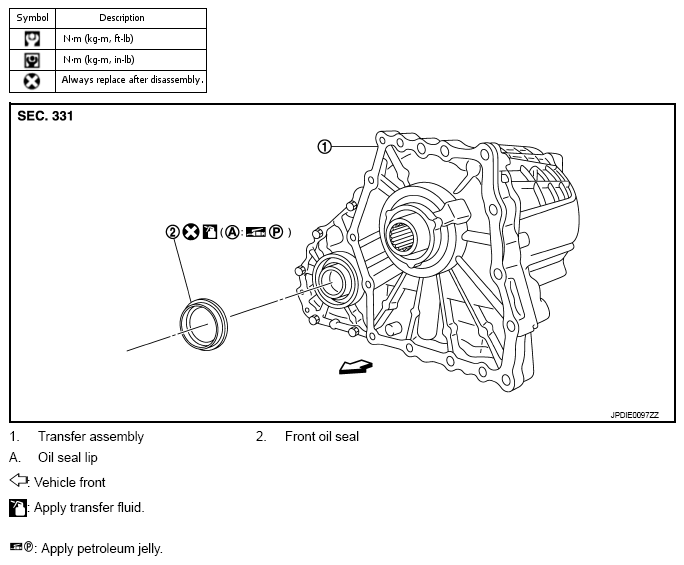

Fig 1: Exploded View Of Front Oil Seal
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
SYMBOLS
" for symbols not described above.
